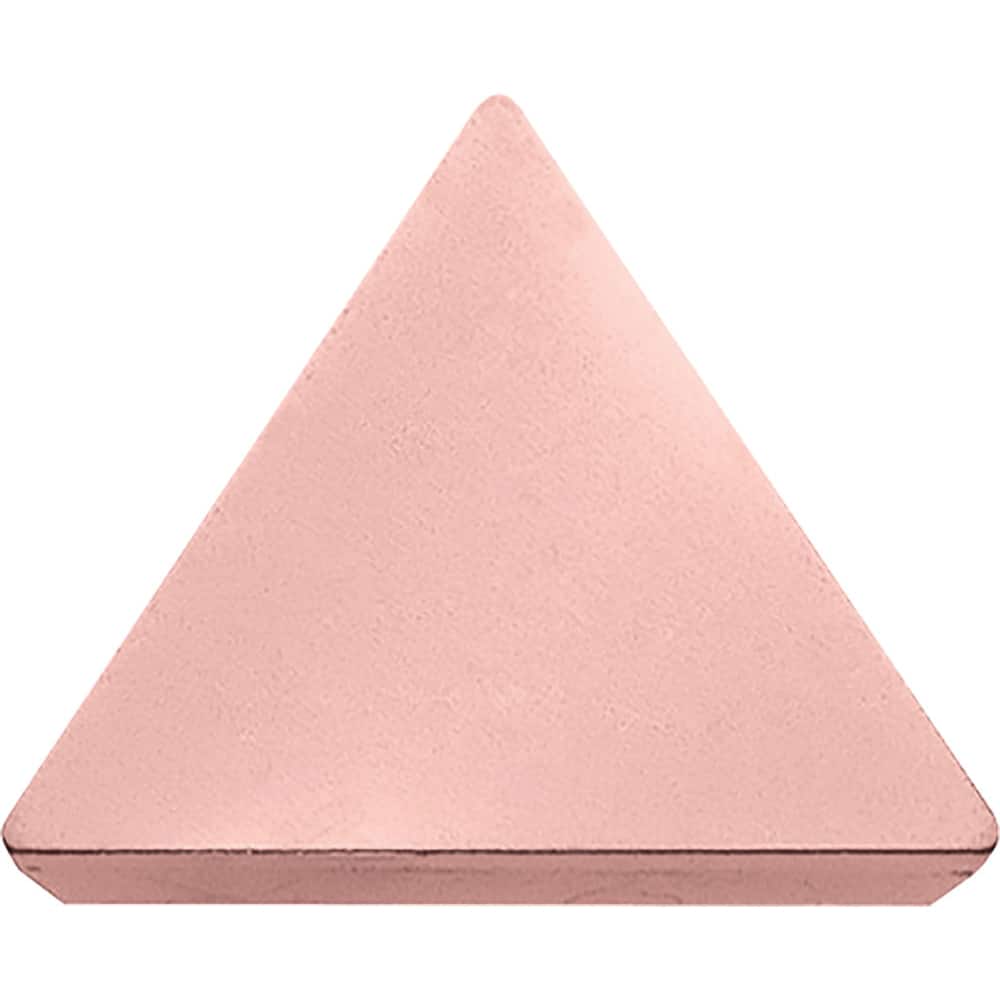

TPMN110304 CA310 Carbide Turning Insert TiCl2O3/Ti Finish, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 0.1252″ Thick, 60° Triangle, Series CA3
Item #: 28460756
Brand: Kyocera
Model #: TMC06600
Product Specifications
| Insert Style | TPM |
| Insert Shape Code | T |
| Insert Size Code | 221 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | M |
| Manufacturer Grade | CA310 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | CA3 |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | K |
| Manufacturers Catalog Number | TPM221CA310 |
| Chip Breaker | N |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; Ti |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
