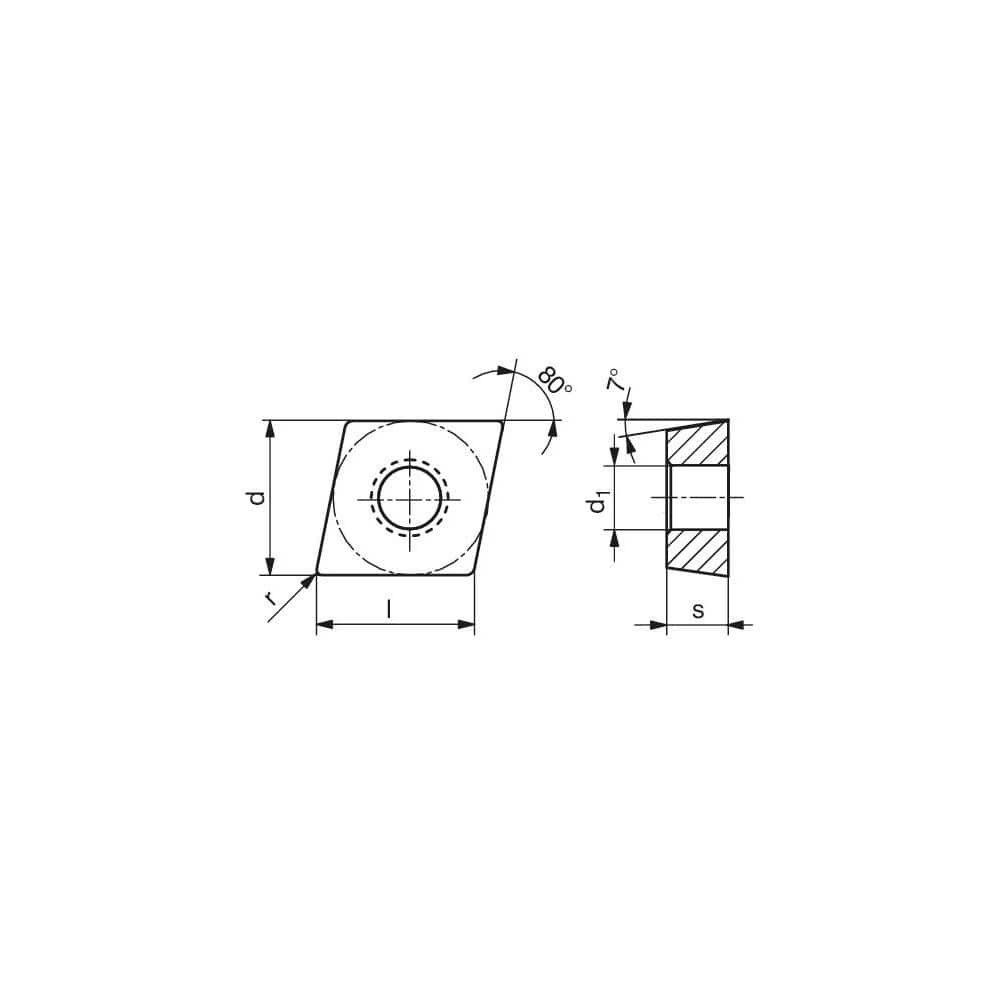

Turning Insert: CCMT32.51EN-29 H216T, Solid Carbide Uncoated Finish, Neutral, 0.0157″ Corner Radius, 80.0 ° N/A Diamond, Series CCMT
Item #: 26301259
Brand: Ceratizit
Model #: 7024561600
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 32.51 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | H216T |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3819 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Universal; Cast Iron |
| Secondary Workpiece Material Code | K; O |
| Ansi Code | CCMT32.51EN29H216T |
| Iso Code | CCMT 09T304EN-29 H216T |
| Chip Breaker | 29 |
| Coating/Finish | Uncoated |
