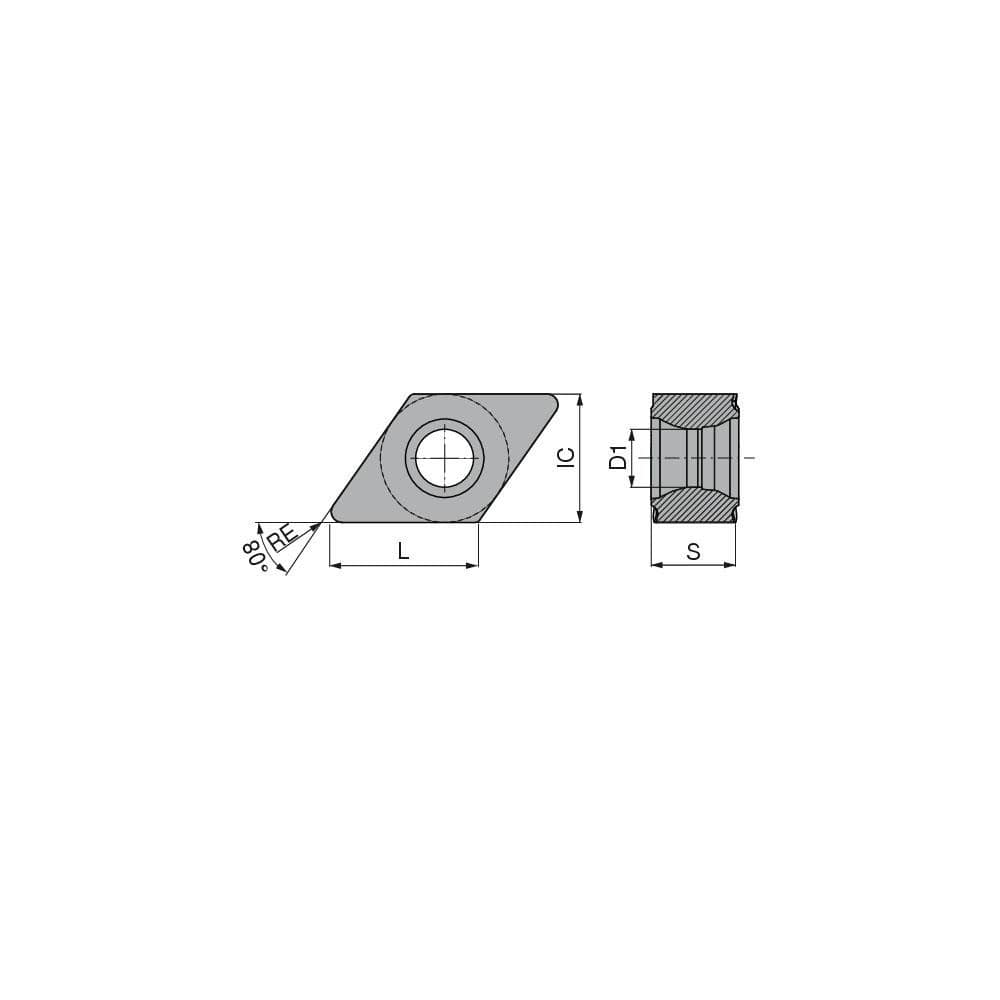

Turning Insert: DNMU332EN-M30 CTCP115, Solid Carbide TiCN & Al2O3 Finish, Neutral, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series DNMU
Item #: 26299727
Brand: Ceratizit
Model #: 7641330600
Product Specifications
| Insert Style | DNMU |
| Insert Shape Code | D |
| Insert Size Code | 342 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCP115 |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Maximum Depth of Cut (Decimal Inch) | 0.4567 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNMU |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | DNMU332ENM30CTCP115 |
| Iso Code | DNMU 110608EN-M30 CTCP115 |
| Chip Breaker | M30 |
| Coating/Finish | TiCN; Al2O3 |
