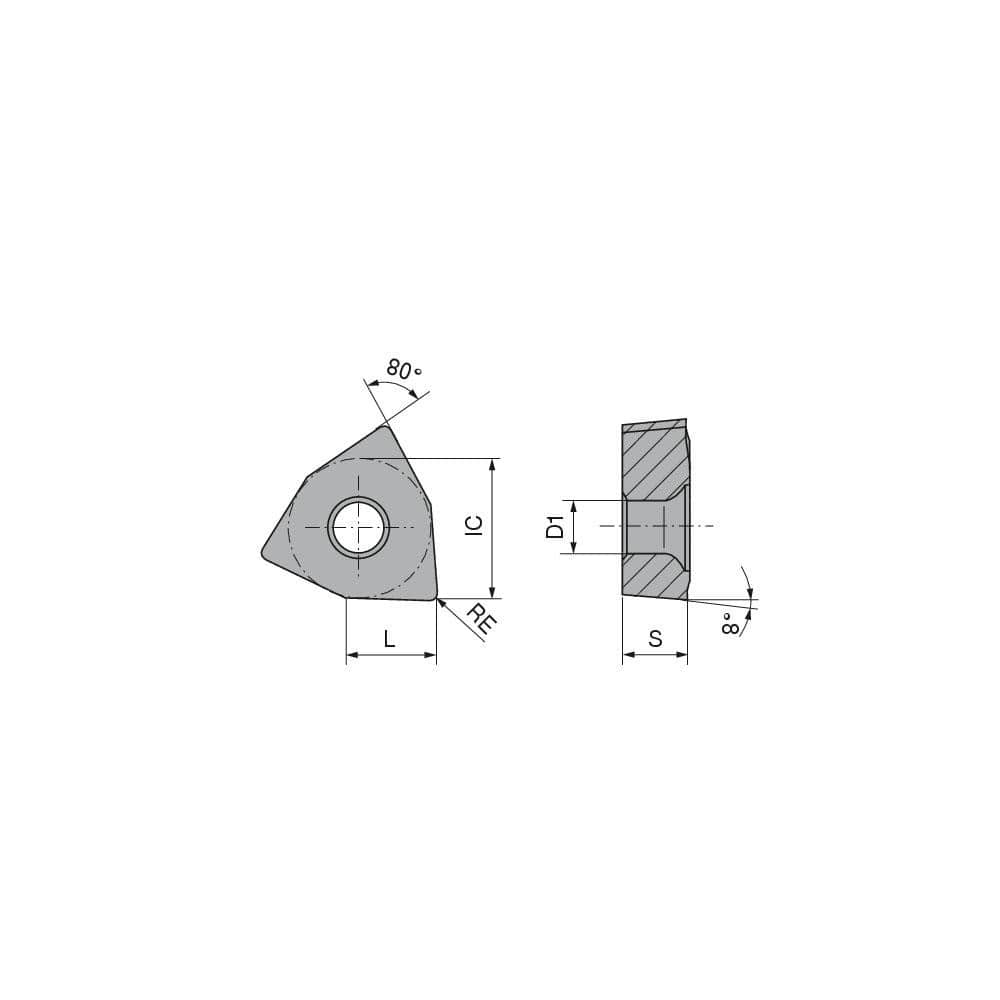

Turning Insert: WNMU442EN-M50 CTCK110, Solid Carbide TiCN & Al2O3 Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 80.0 ° N/A Trigon, Series WNMU
Item #: 26289686
Brand: Ceratizit
Model #: 7043201800
Product Specifications
| Insert Style | WNMU |
| Insert Shape Code | W |
| Insert Size Code | 442 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCK110 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3386 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNMU |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | WNMU442ENM50CTCK110 |
| Iso Code | WNMU 080608EN-M50 CTCK110 |
| Chip Breaker | M50 |
| Coating/Finish | TiCN; Al2O3 |
