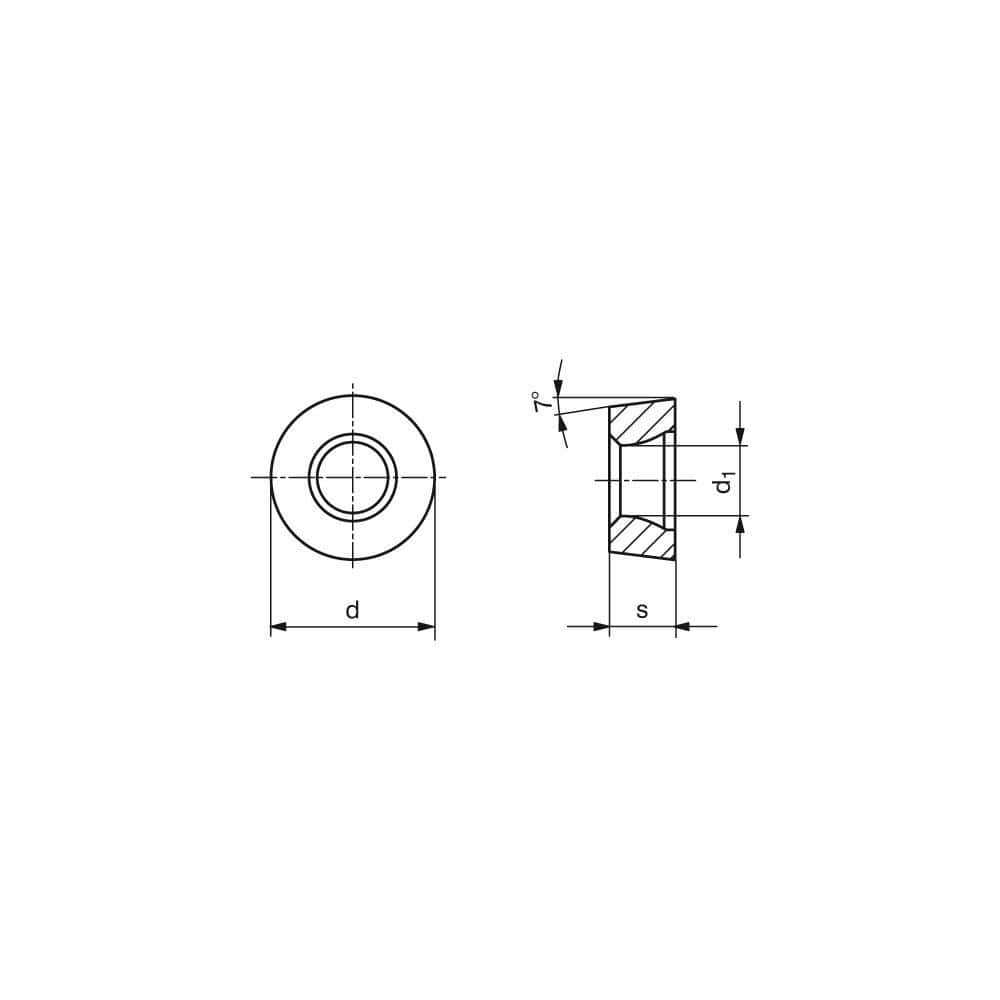

Turning Insert: RCGT0602MOENSM, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.1181″ Corner Radius, 0.0 ° N/A Round, Series RCGT
Item #: 26285197
Brand: Ceratizit
Model #: 7626250201
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 602 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCP125P |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Included Angle | 0.0 |
| Relief Angle | 7 |
| Series | RCGT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | RCGT0602MOENSMCTCP125P |
| Iso Code | RCGT 0602MOEN-SM CTCP125-P |
| Chip Breaker | SM |
| Coating/Finish | TiCN; TiN; Al2O3 |
