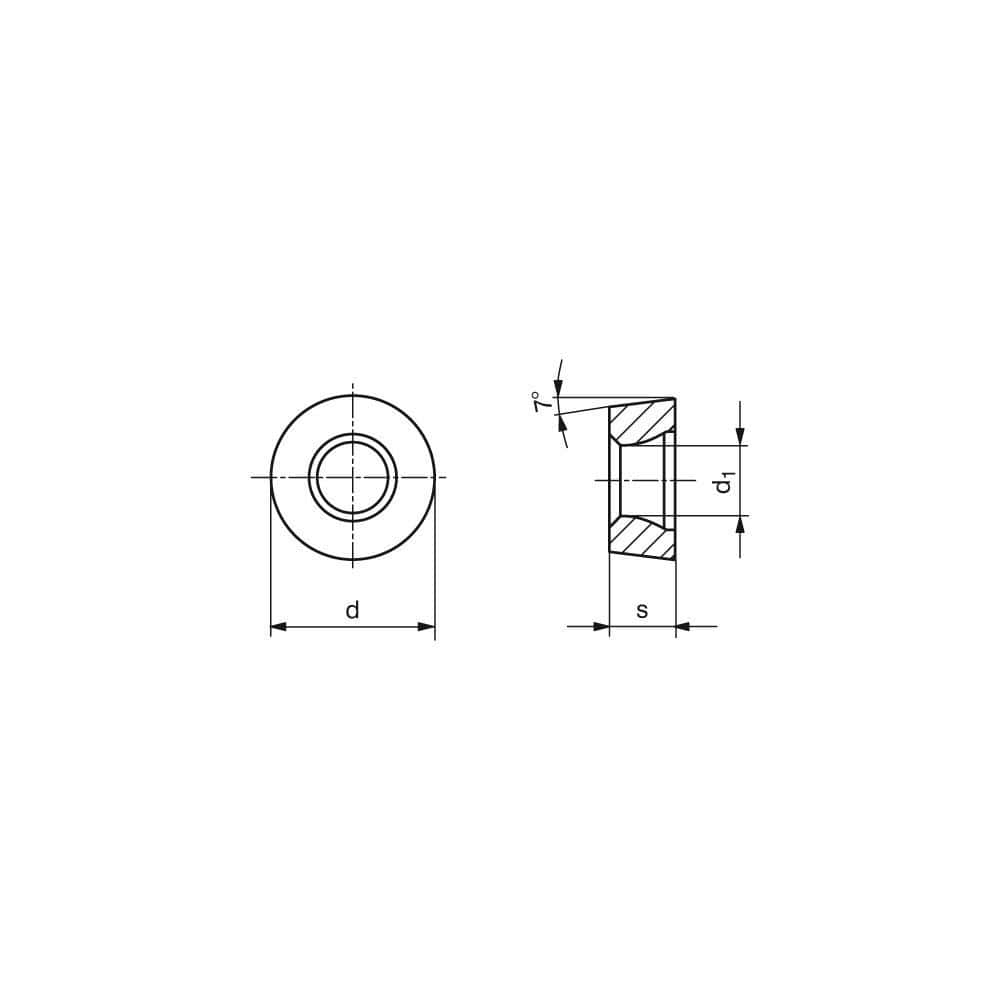

Turning Insert: RCGT0803MO-AL CWN15, Solid Carbide TiN Finish, Neutral, 0.1575″ Corner Radius, 0.0 ° N/A Round, Series RCGT
Item #: 26238295
Brand: Ceratizit
Model #: 70266302
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 0803 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CWN15 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Included Angle | 0.0 |
| Relief Angle | 7 |
| Series | RCGT |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | RCGT0803MOALCWN15 |
| Iso Code | RCGT 803 MO-AL |
| Chip Breaker | 27 |
| Coating/Finish | TiN |
