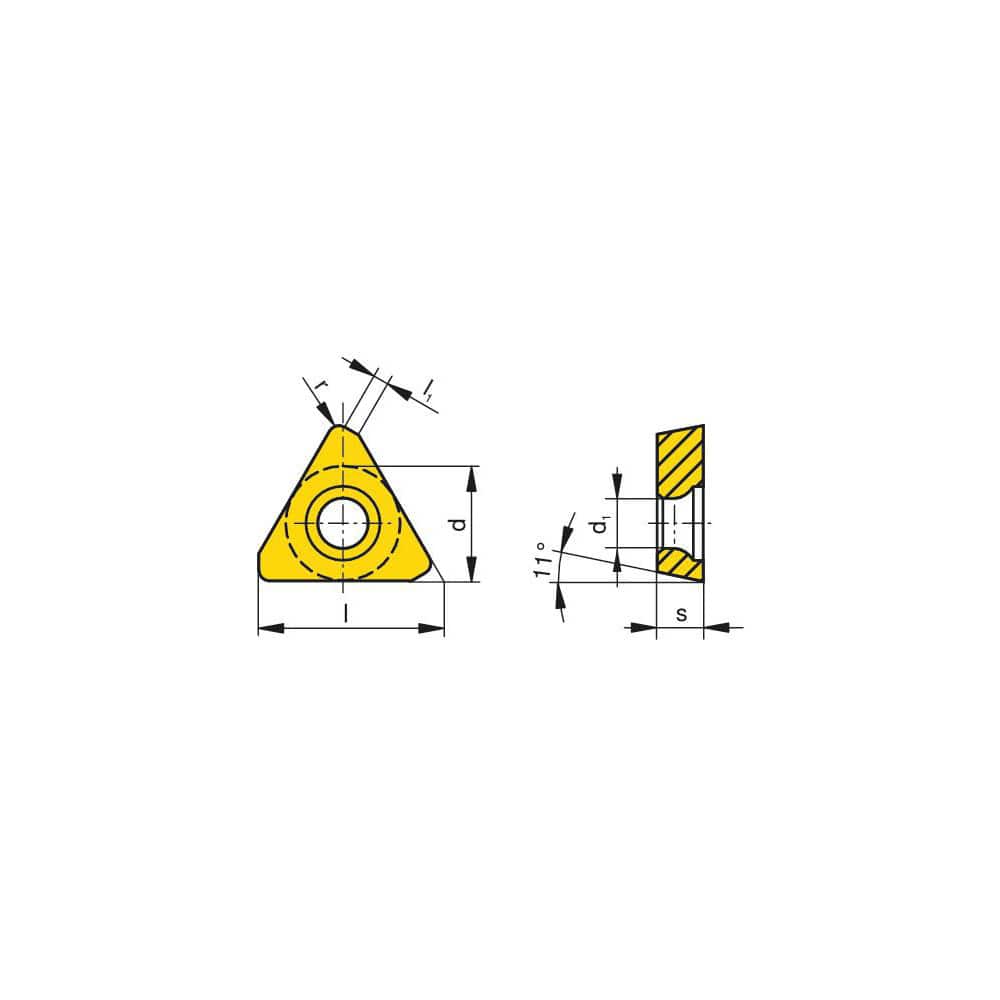

Milling Insert: TPKW 2204PDSR CTPP235, CTPP235, Solid Carbide N/A Finish,
Item #: 26222752
Brand: Ceratizit
Model #: 51070125
Product Specifications
| Insert Style | TPKW |
| Insert Size Code | 2204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPP235 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Hand | Right Hand |
| Relief Angle | 11.00 |
| Series | TPKW |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1248 |
| Number Of Cutting Edges | 3 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3748 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | TPKW 2204PDSR CTPP235 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
