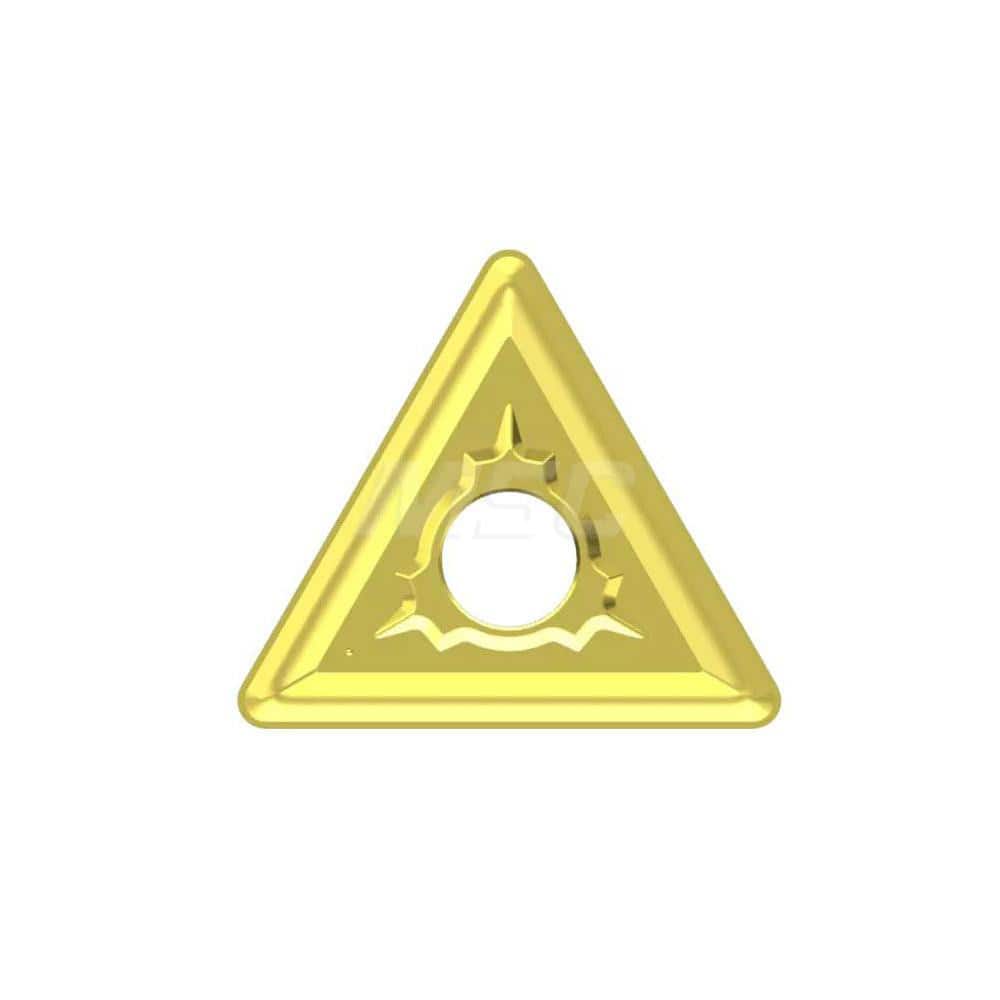

Turning Insert: TNMG160412-MR YG3030, Solid Carbide TiCN & Al2O3 Finish, 0.6180″ Long, 3/8″ Inscribed Circle, N/A Series TNMG
Item #: 26116699
Brand: YG-1
Model #: 22001062
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 160412 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | YG3030 |
| Inscribed Circle (Inch) | 3/8 |
| Width (Inch) | 3/8 |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Series | TNMG |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6180 |
| Chip Breaker | G |
| Coating/Finish | TiCN; Al2O3 |
