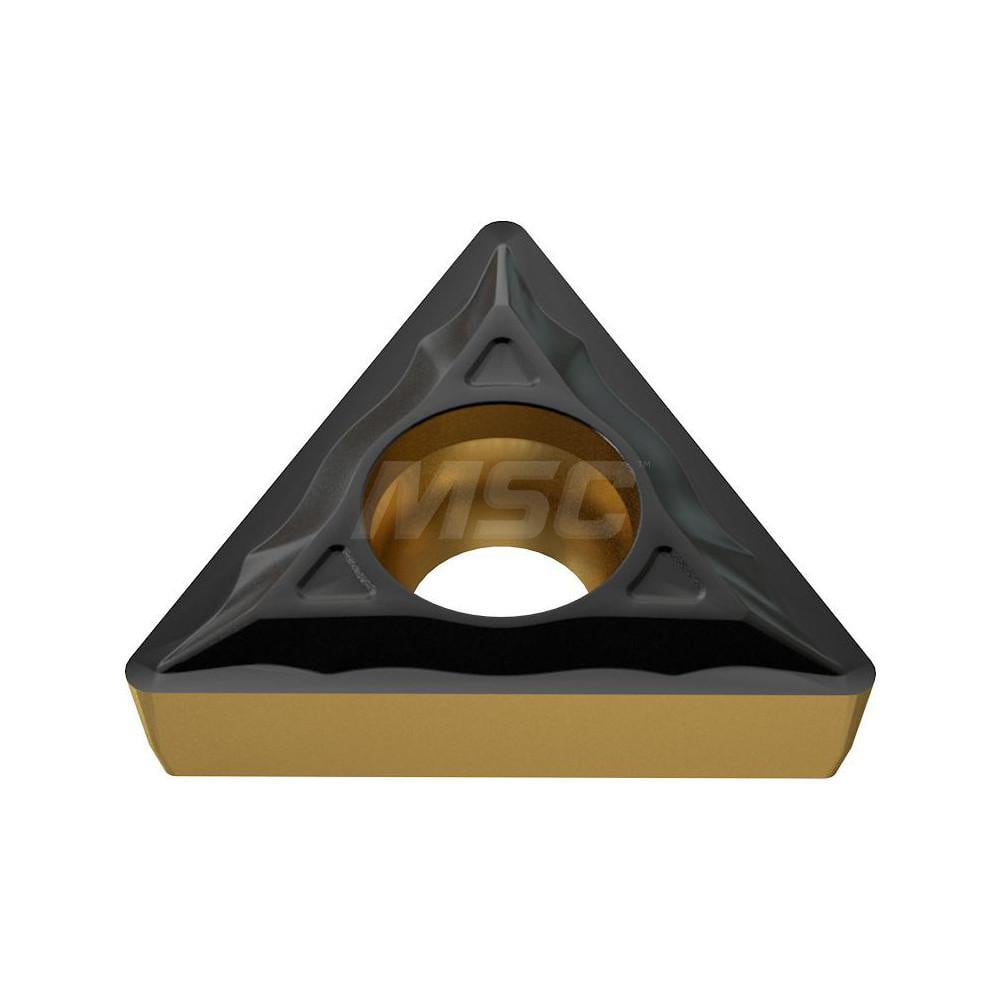

Turning Insert: TCMT110204-UF YG3030, Solid Carbide TiCN & Al2O3 Finish, 0.4060″ Long, 1/4″ Inscribed Circle, N/A Series TCMT
Item #: 26113522
Brand: YG-1
Model #: 22001196
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 110204 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | YG3030 |
| Inscribed Circle (Inch) | 1/4 |
| Width (Inch) | 1/4 |
| Insert Thickness (Inch) | 1/16 |
| Corner Radius (Inch) | 1/64 |
| Series | TCMT |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (Decimal Inch) | 0.4060 |
| Chip Breaker | T |
| Coating/Finish | TiCN; Al2O3 |
