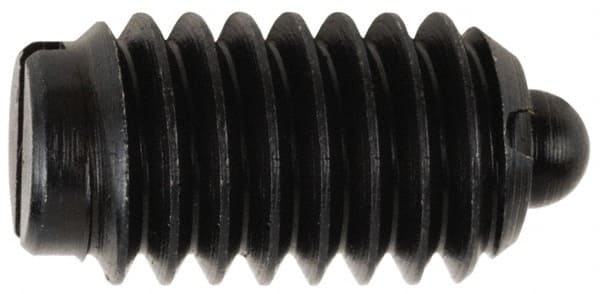

TE-CO - Threaded Spring Plungers Thread Size: 8-36 Thread Length (Inch): 7/16
Item #: 06860803
Brand: TE-CO
Model #: 53401
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Product Specifications
Threaded Spring Plungers; Thread Size: 8-36 ; Thread Length (Inch): 7/16 ; Nose Material: Stainless Steel ; Body Material: Stainless Steel ; Maximum Plunger Diameter (Decimal Inch): 0.0690 ; Plunger Projection (Decimal Inch): 0.0520
| Thread Size | 8-36 |
| Thread Length (Inch) | 7/16 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0690 |
| Plunger Projection (Decimal Inch) | 0.0520 |
| Locking Element | Yes |
| Body Length (Inch) | 7/16 |
| Plunger Length Type | Short |
| Plunger Length (Inch) | 7/16 |
| Final End Force (Lb.) | 4.75 |
| Initial End Force (Lb.) | 1.50 |
| Finish/Coating | Black Oxide |
| Tolerance (Decimal Inch) | +0.0000 |
