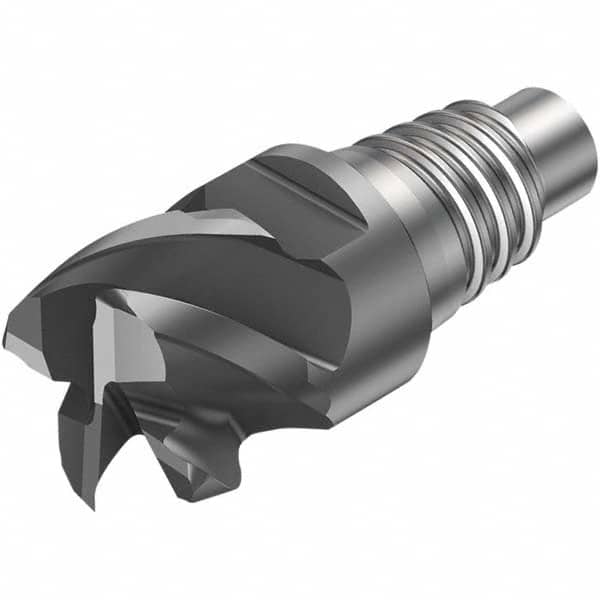

Sandvik Coromant - 1" Mill Diam, 0.5512" LOC, 0.5512" OAL, 5 Flute Square End Mill Head
Item #: 15488836
Brand: Sandvik Coromant
Model #: 7611891
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 5 |
| Length of Cut (Decimal Inch) | 0.5512 |
| Connection Type | E25 |
| Overall Length (Inch) | 0.5512 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Helix Angle | 50 |
| Manufacturer Grade | 1730 |
| Series/List | CoroMill 316 |
