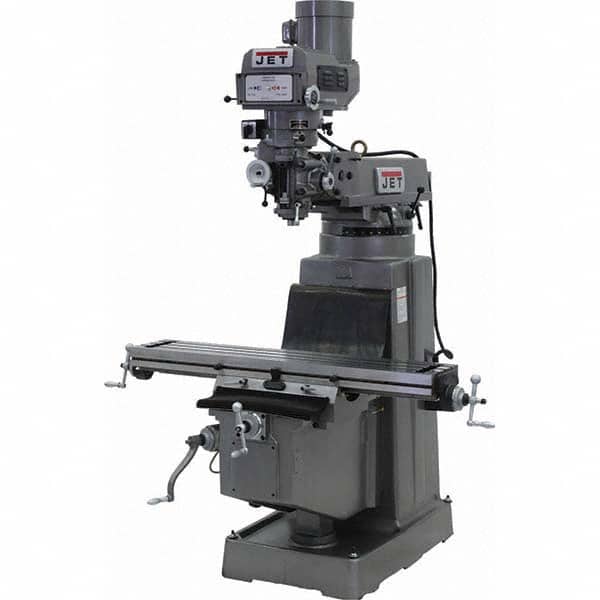

Jet - Knee Milling Machines Spindle Speed Control: Electronic Variable Speed Table Length (Inch): 10
Item #: 10096881
Brand: Jet
Model #: 690926
Features and Benefits
Electronic Variable Speed control (EVS, are similar to variable speed pulleys, but the speed is controlled electronically rather than manually by turning a dial. They feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Knee Milling Machines; Spindle Speed Control: Electronic Variable Speed ; Table Length (Inch): 10 ; Table Width (Inch): 50 ; Horsepower (HP): 3.00 ; Phase: 3 ; Voltage: 230
| Spindle Speed Control | Electronic Variable Speed |
| Table Length (Inch) | 10 |
| Table Width (Inch) | 50 |
| Horsepower (HP) | 3.00 |
| Phase | 3 |
| Voltage | 230 |
| Longitudinal Travel (Decimal Inch) | 34.2500 |
| Cross Travel (Decimal Inch) | 14.7500 |
| Knee Travel (Decimal Inch) | 16.1250 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Includes | Air Powered Draw Bar |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 5 |
| Quill Diameter (Inch) | 3-3/8 |
| Table Load Capacity (Lb.) | 840.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Overall Length (Decimal Inch) | 63.0000 |
| Overall Height (Inch) | 89 |
| Overall Depth (Inch) | 63 |
| Certification | CSA/CUS |
| Warranty | 2 Year |
