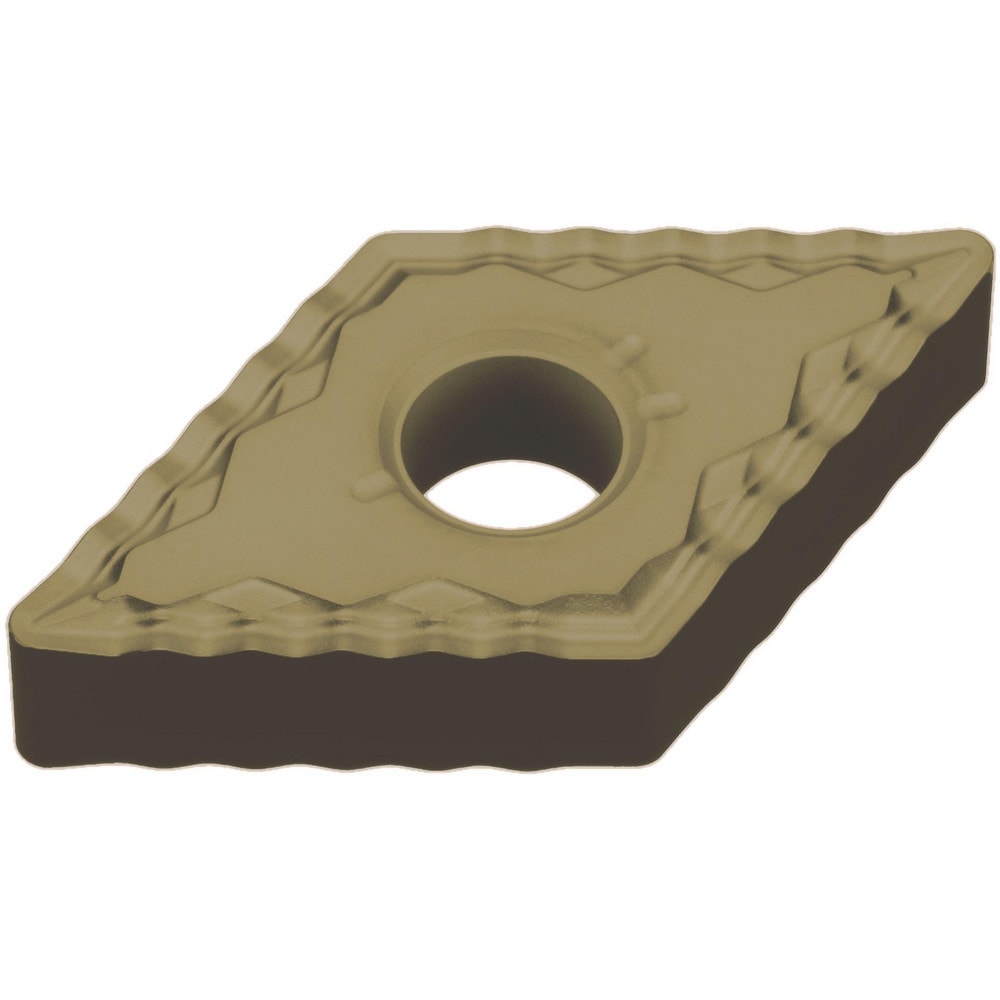

Turning Insert: DNMG433SA UE6110, Carbide

Turning Insert: DNMG433SA UE6110, Carbide


Item #: 02498376
Brand: Mitsubishi
Model #: 384690

Product Specifications

ANSI Insert Code DNMG433
ISO Insert Code DNMG150412
Relief Angle 0
Insert Style DNMG
Corner Radius (mm) 1.20
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Included Angle 55
Manufacturer Grade UE6110
Coating/Finish CVD
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Material Carbide
Insert Shape D - Diamond (Rhombic) 55-Deg
Chip Breaker Operation Light Machining; Finishing
Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 4
Insert Shape Code D
Clearance Code N
Tolerance Code M
Primary Workpiece Material Code P
Chip Breaker SA
ANSI Size Code 433
ISO Size Code 150412
UNSPSC Code 23242105
Insert Size Code 4
$25.33
