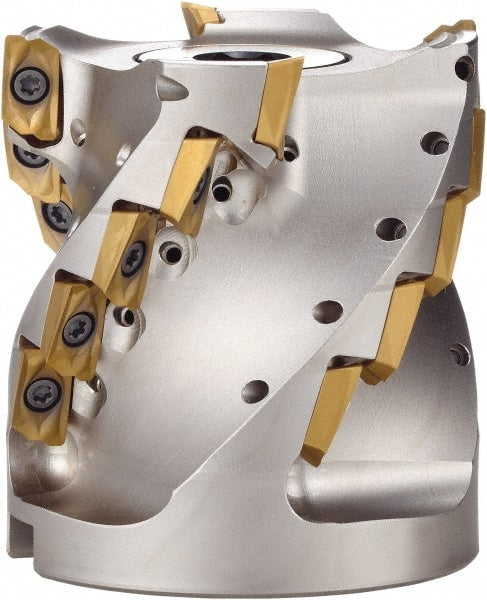

2-1/2" Cut Diam, 1" Arbor Hole Diam, 2.913" Max Depth, Indexable Square-Shoulder Face Mill

2-1/2" Cut Diam, 1" Arbor Hole Diam, 2.913" Max Depth, Indexable Square-Shoulder Face Mill


Item #: 55704290
Brand: OSG
Model #: 53001001

Product Specifications

Maximum Cutting Diameter (Inch) 2-1/2
Maximum Cutting Diameter (mm) 63.50
Maximum Depth of Cut (Decimal Inch) 2.9130
Arbor Hole Diameter (Inch) 1
Arbor Hole Diameter (Decimal Inch) 1.0000
Compatible Insert Size Code ZDKT15...
Cutter Style PSEL
Cutting Direction Right Hand
Insert Holding Method Screw; Clamp
Lead Angle 0
Series 53001
Overall Height (Decimal Inch) 2.9130
Keyway Width (Decimal Inch) 0.3750
Hub Diameter (Decimal Inch) 2.3620
UNSPSC Code 27112803
Toolholder Material Steel
Keyway Depth (Decimal Inch) 0.2360
Coolant Through Yes
Number Of Cutter Inserts 4
Number Of Flutes 4
Maximum Cutting Diameter (Inch) 2-1/2
Maximum Cutting Diameter (mm) 63.50
Maximum Depth of Cut (Decimal Inch) 2.9130
Arbor Hole Diameter (Inch) 1
Arbor Hole Diameter (Decimal Inch) 1.0000
Compatible Insert Size Code ZDKT15...
Cutter Style PSEL
Cutting Direction Right Hand
Insert Holding Method Screw; Clamp
Lead Angle 0
Series 53001
Overall Height (Decimal Inch) 2.9130
Keyway Width (Decimal Inch) 0.3750
Hub Diameter (Decimal Inch) 2.3620
UNSPSC Code 27112803
Toolholder Material Steel
Keyway Depth (Decimal Inch) 0.2360
Coolant Through Yes
Number Of Cutter Inserts 4
Number Of Flutes 4
MSC Part # 55704290
Mfr Part # 53001001
Country of Origin Country of Origin is subject to change Luxembourg
$1,687.56
