Schunk - Manual Lathe Chucks Chuck Type: Self-Centering Nominal Chuck Size: 16 - Exact Tool & Supply

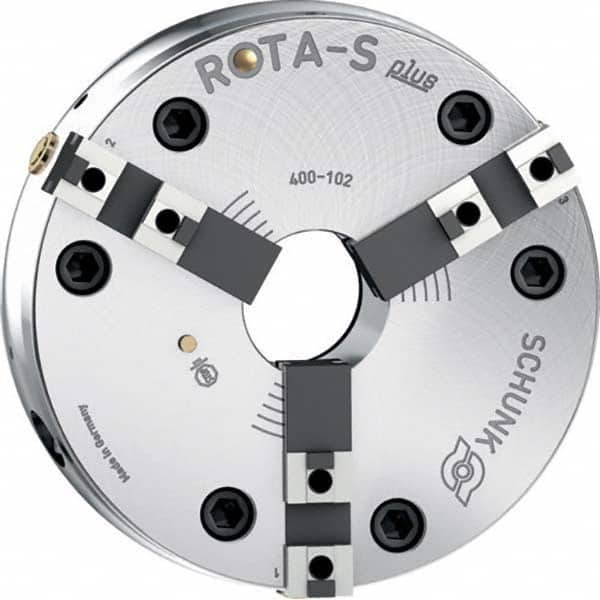

Schunk - Manual Lathe Chucks Chuck Type: Self-Centering Nominal Chuck Size: 16


Item #: 16042681
Brand: Schunk
Model #: 814240

Features and Benefits

Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.

Product Specifications

Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 16 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (mm): 102.00 ; Through-Hole Diameter (Inch): 4
Chuck Type Self-Centering
Nominal Chuck Size 16
Number of Jaws 3
Mount Plain Back
Through-Hole Diameter (mm) 102.00
Through-Hole Diameter (Inch) 4
Body Material Forged Steel
Reversible Jaws Reversible Jaws
$10,815.00
