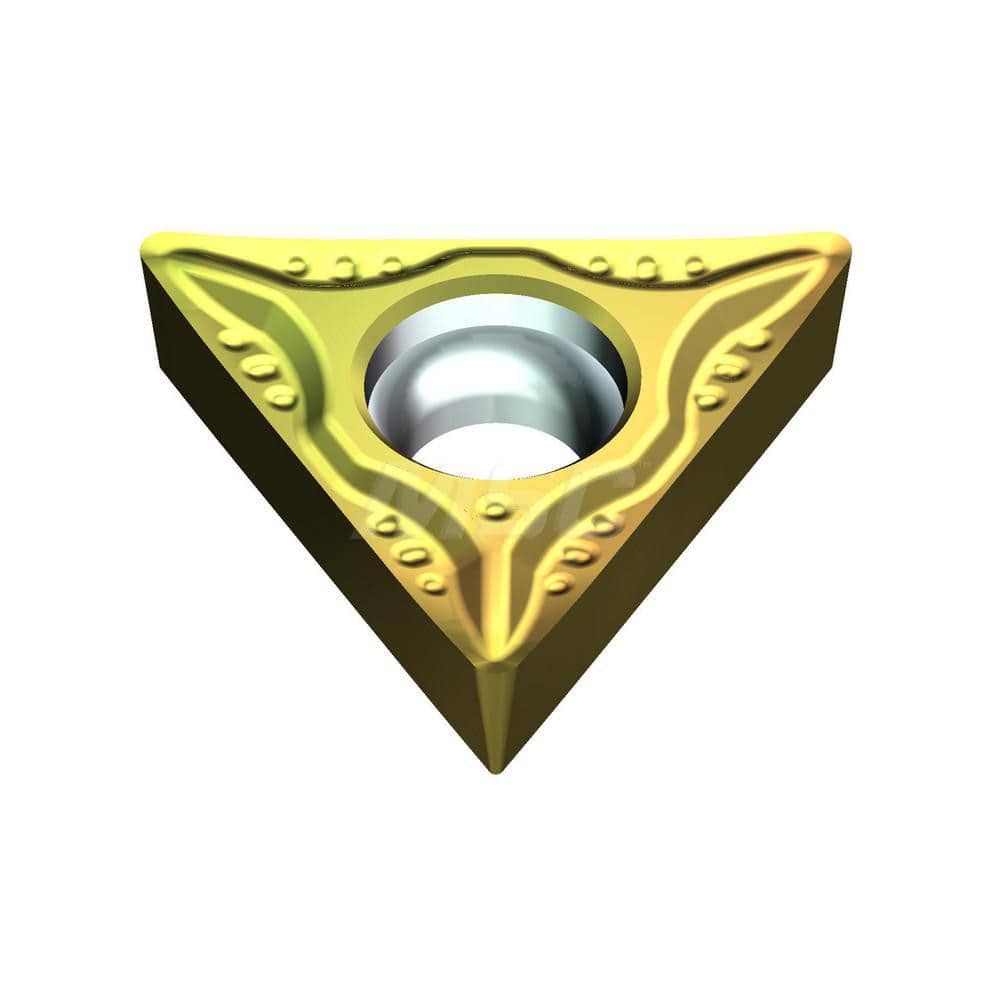

Turning Insert: TCGT2151MESI T1500Z, Cermet AlN Finish, Neutral, 0.4331″ Long, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 60.0 ° N/A Triangle, Series T1500Z
Item #: 23219256
Brand: Sumitomo
Model #: 1N4A015
Product Specifications
| Insert Style | TCGT |
| Insert Size Code | 21.51 |
| Insert Shape | Triangle |
| Insert Material | Cermet |
| Manufacturer Grade | T1500Z |
| Hole Diameter (Decimal Inch) | 0.1103 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | T1500Z |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | TCGT21.51MESIT1500Z |
| Chip Breaker | MESI |
| Coating/Finish | AlN |
