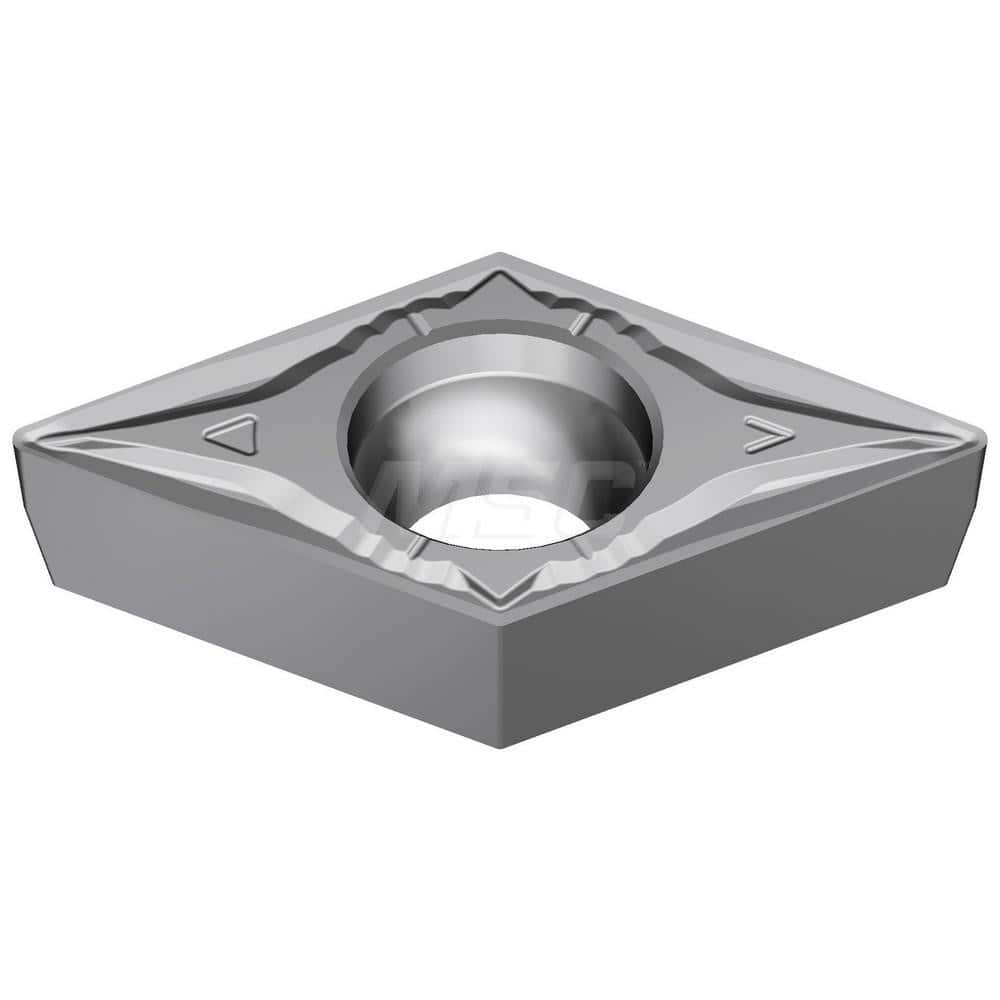

Turning Insert: DCMT2152EGU T1500A, Cermet Uncoated Finish, Neutral, 0.3031″ Long, 1/4″ Inscribed Circle, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series T1500A
Item #: 23218290
Brand: Sumitomo
Model #: 19JTDCV
Product Specifications
| Insert Style | DCMT |
| Insert Size Code | 21.52 |
| Insert Shape | Diamond |
| Insert Material | Cermet |
| Manufacturer Grade | T1500A |
| Hole Diameter (Decimal Inch) | 0.1103 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | T1500A |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3031 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | DCMT21.52EGUT1500A |
| Chip Breaker | EGU |
| Coating/Finish | Uncoated |
