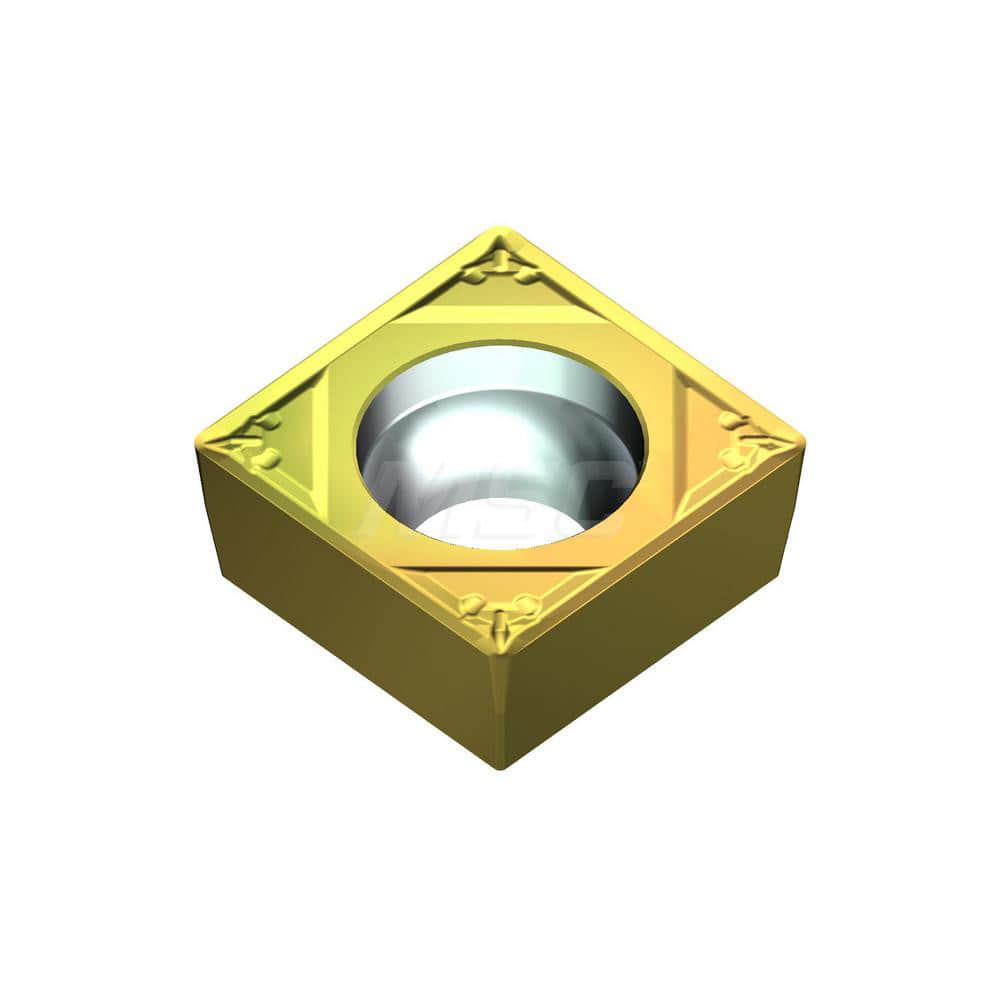

Turning Insert: SCMT3251ELB T2500Z, Cermet AlN Finish, Neutral, 0.3750″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 90.0 ° N/A Square, Series T2500Z
Item #: 23217763
Brand: Sumitomo
Model #: 19U5CPB
Product Specifications
| Insert Style | SCMT |
| Insert Size Code | 32.51 |
| Insert Shape | Square |
| Insert Material | Cermet |
| Manufacturer Grade | T2500Z |
| Hole Diameter (Decimal Inch) | 0.1733 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 90.0 |
| Relief Angle | 7 |
| Series | T2500Z |
| Rake | Positive |
| Insert Length (Inch) | 3/8 |
| Insert Length (Decimal Inch) | 0.3750 |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material Code | P; K |
| Ansi Code | SCMT32.51ELBT2500Z |
| Chip Breaker | ELB |
| Coating/Finish | AlN |
