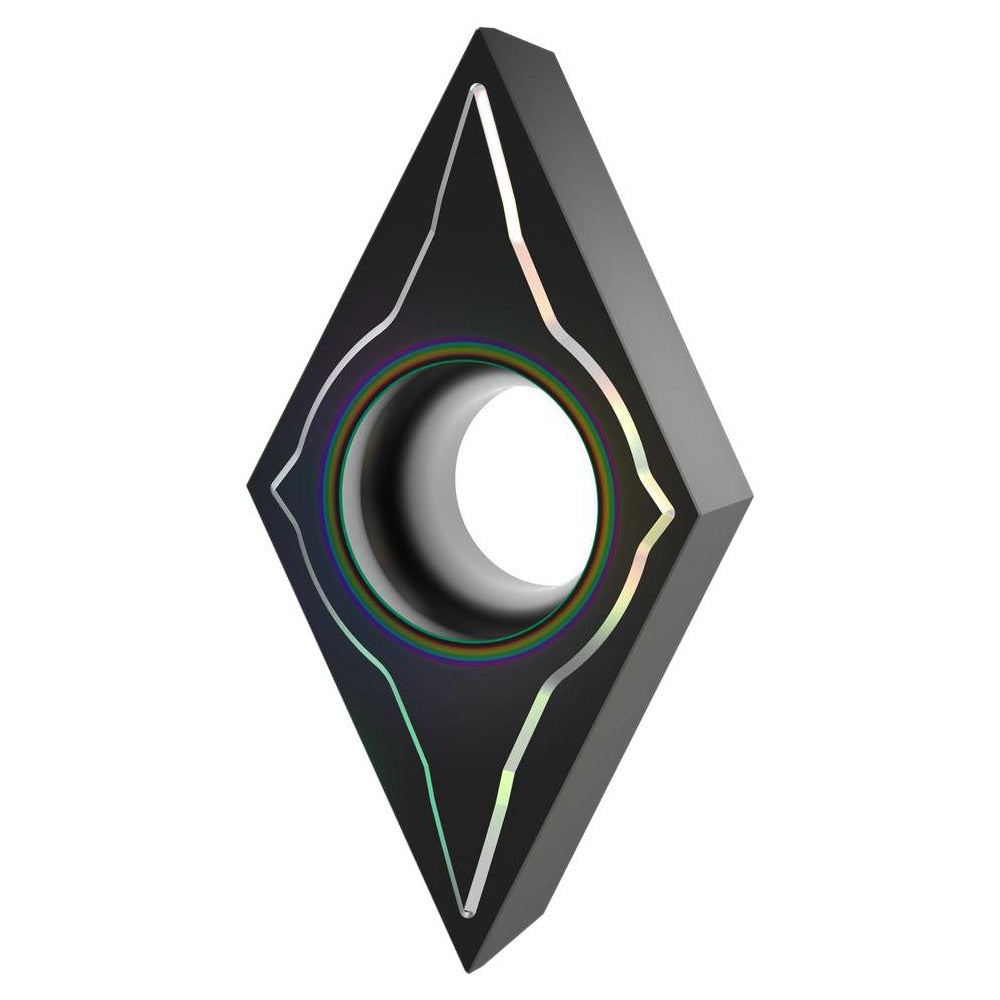

Turning Insert: DCGT21502MFFS KCS25S, Carbide
Item #: 94058120
Brand: Kennametal
Model #: 7154845
Product Specifications
| ANSI Insert Code | DCGT21502 |
| ISO Insert Code | DCGT070201 |
| Relief Angle | 7.000 |
| Insert Style | DCGT |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 80.00 |
| Manufacturer Grade | KCS25S |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Series | DCGT |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 55° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 3/32 |
| Clearance Code | C |
| Tolerance Code | G |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3052 |
| Iso Code | DCGT070201MFFS |
| Manufacturers Catalog Number | DCGT21502MFFS KCS25S |
| Chip Breaker | FFS |
| ANSI Size Code | 21502 |
| ISO Size Code | 070201 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21502 |
| Country of Origin | Japan |
