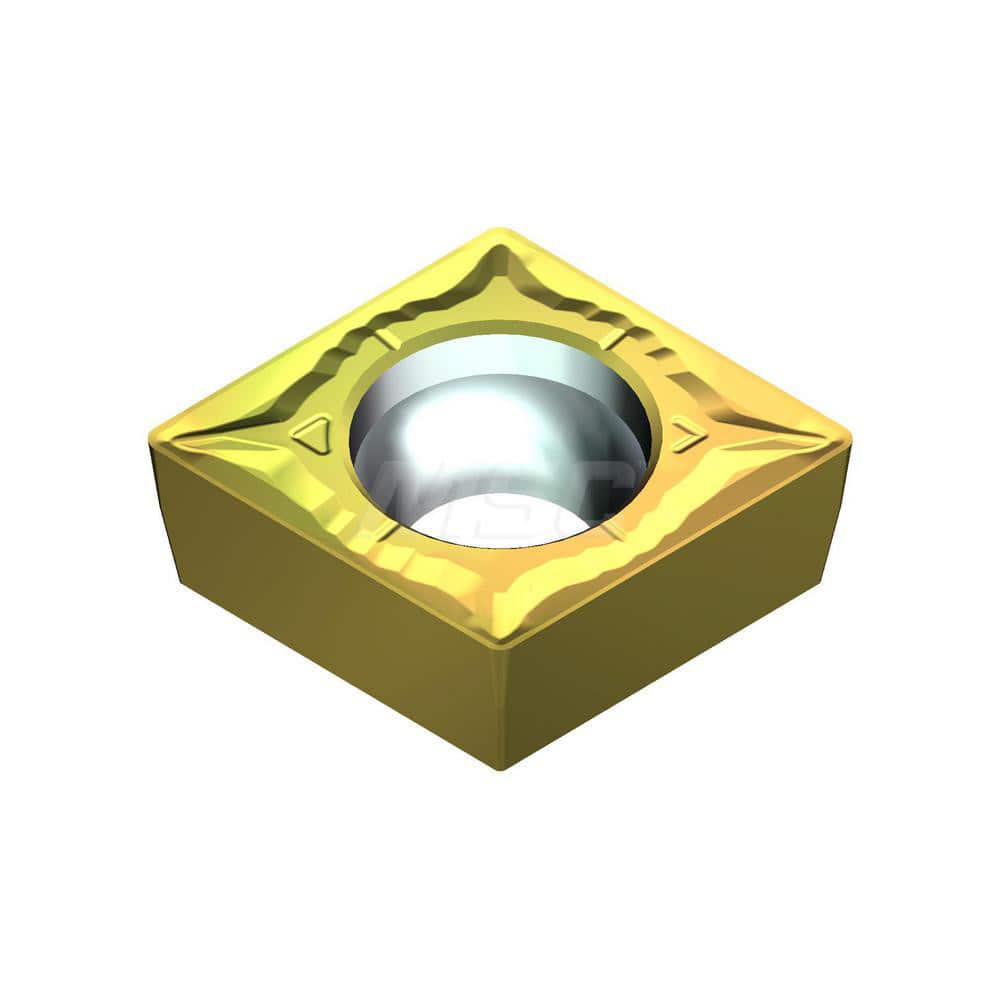

Turning Insert: CCMT3252EGU T1500Z, Cermet AlN Finish, Neutral, 0.3819″ Long, 3/8″ Inscribed Circle, 0.0315″ Corner Radius, 80.0 ° N/A Diamond, Series T1500Z
Item #: 23215130
Brand: Sumitomo
Model #: 194ADCN
Product Specifications
| Insert Style | CCMT |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Insert Material | Cermet |
| Manufacturer Grade | T1500Z |
| Hole Diameter (Decimal Inch) | 0.1733 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | T1500Z |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | CCMT32.52EGUT1500Z |
| Chip Breaker | EGU |
| Coating/Finish | AlN |
