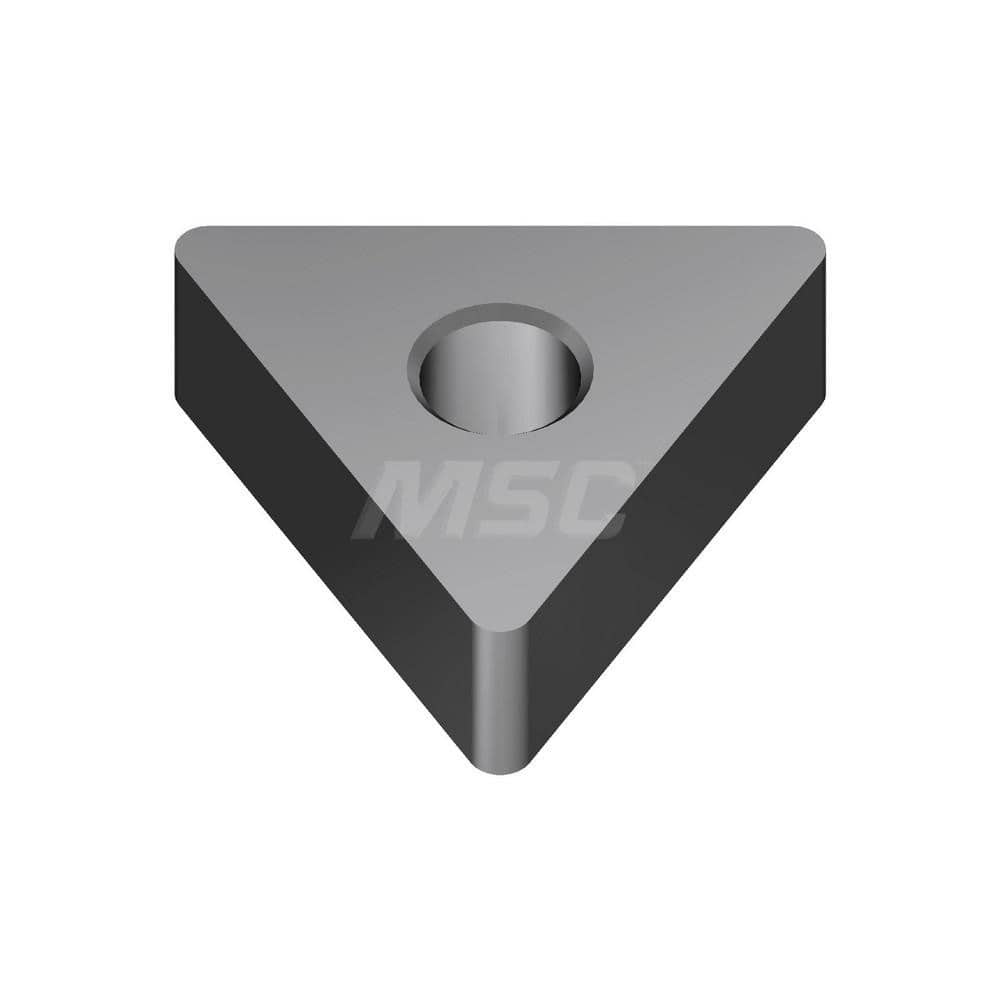

Turning Insert: TNGA321 H1, Solid Carbide Uncoated Finish, Neutral, 0.6496″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 60.0 ° N/A Triangle, Series H1
Item #: 23213721
Brand: Sumitomo
Model #: 1033123
Product Specifications
| Insert Style | TNGA |
| Insert Size Code | 321 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | H1 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | H1 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material Code | K; N |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | TNGA321H1 |
| Coating/Finish | Uncoated |
