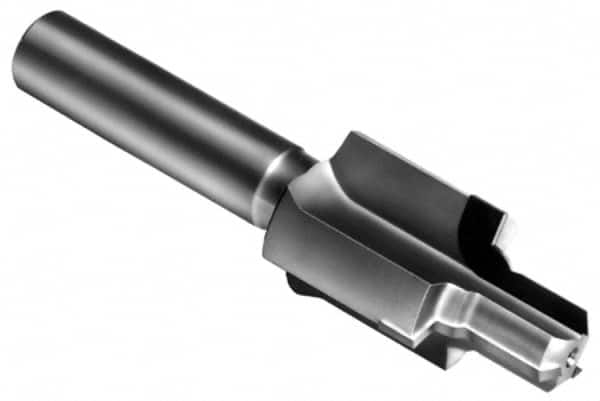

Made in USA - 1-5/16 - 12" Port, 1.93" Spotface Diam, 1" Tube Outside Diam, Reamer Pilot, Straight Shank, Carbide Tipped Porting Tool
Item #: 00390468
Brand: Made in USA
Model #:
Features and Benefits
Carbide-tipped cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
| Product Specifications | |
|---|---|
| Port Standard Designation | MS 16142 |
| Pilot Type | Reamer |
| Port Thread Size (Inch) | 1-5/16 - 12 |
| Tool Material | Carbide-Tipped |
| Tube Outside Diameter Compatibility (Inch) | 1 |
| Minimum Pilot Diameter (Decimal Inch) | 1.2265 |
| Spotface Diameter (Decimal Inch) | 1.9300 |
| ShankType | Straight |
| Identification Groove | No |
| Workpiece Compatibility | Tubes |
| Finish/Coating | Bright |
| Overall Length (Inch) | 4-1/8 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Seal Angle | 15 |
| Thread Type | Straight |
| Number of Flutes | 4 |
