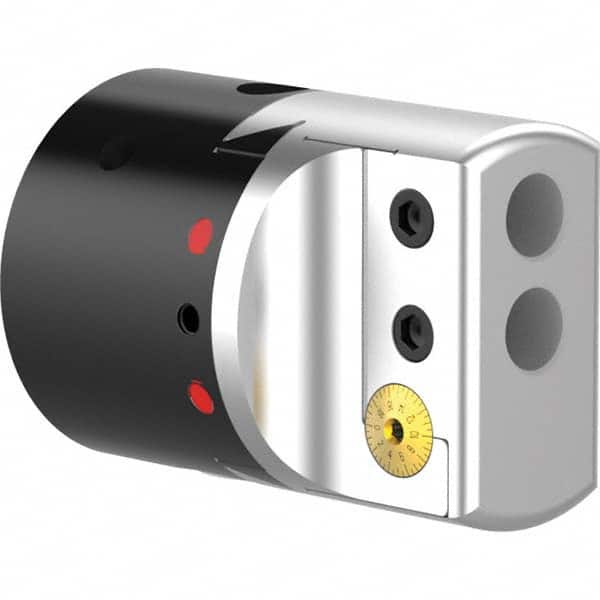

Criterion - 6" Body Diam, Manual Fine Boring Head
Item #: 19329309
Brand: Criterion
Model #: CB206F
Features and Benefits
Fine boring heads are use in applications where high precision and close-hole tolerances are required. The design increases quality and improved productivity during an operation.
Threaded mount boring heads have an internal thread for securing to a boring head shank.
| Product Specifications | |
|---|---|
| Type | Fine Boring Head |
| Actuation Type | Manual |
| Body Diameter (Inch) | 6 |
| Mount Type | Threaded Mount |
| Shank Type | Modular Connection |
| Boring Bar Hole Diameter (Inch) | 1-1/2 |
| Thread Size | 2-1/4 - 10 |
| Series | CB |
| Minimum Bore Diameter (Decimal Inch) | 0.2500 |
| Maximum Bore Diameter (Decimal Inch) | 21.5000 |
| Projection (Decimal Inch) | 5.4750 |
| Overall Length (Decimal Inch) | 5.4750 |
| Offset (Inch) | 2 |
| Travel Size (Decimal Inch) | 2.0000 |
| Diameter Direct Reading (Decimal Inch) | 0.0010 |
| Machine Compatibility | CNC; Manual |
