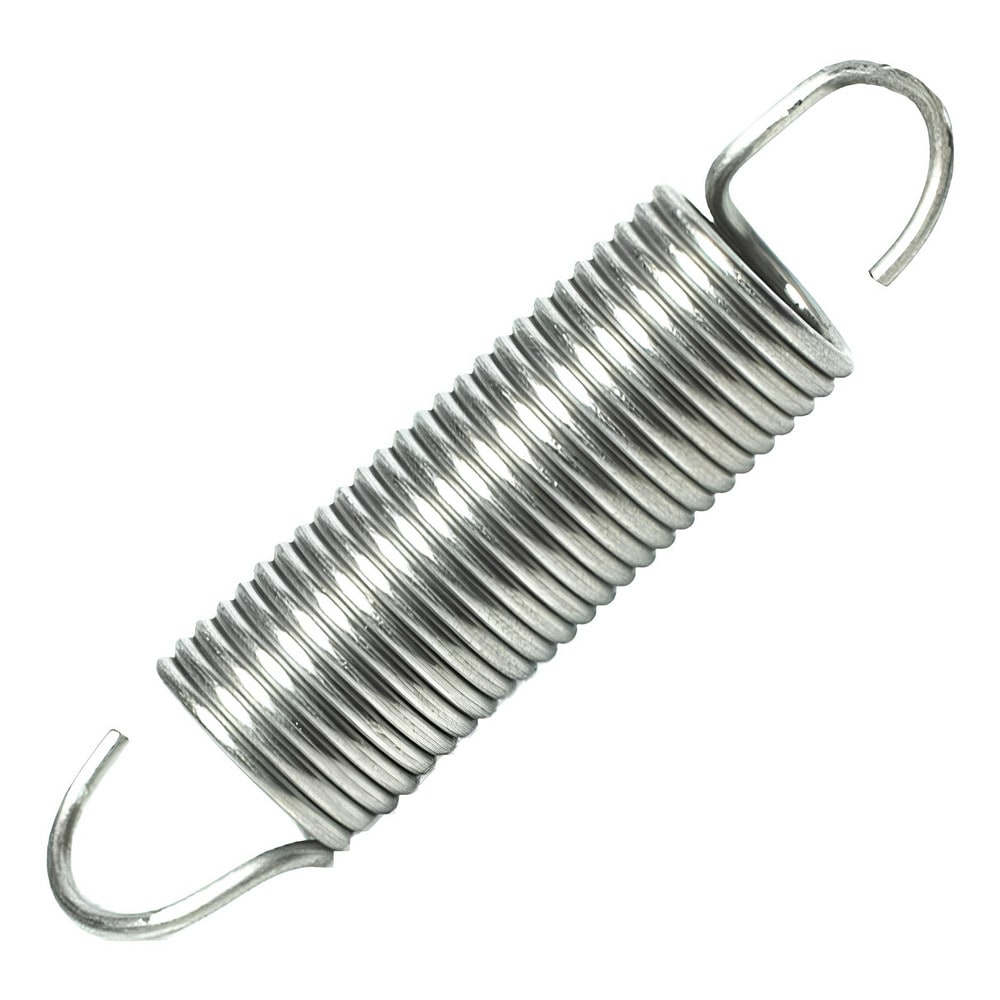

Extension Springs; End Type: Hook; Outside Diameter (Decimal Inch
Item #: 03167202
Brand: Associated Spring Raymond
Model #: MH12501355000S
Product Specifications
| End Type | Hook |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.2500 |
| Spring Rate | 14.3300 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 5.2700 |
| Initial Tension (Lb.) | 5.15 |
| Maximum Extended Length (Decimal Inch) | 8.6400 |
| Free Length (Inch) | 5 |
| Inside Hook Length (Fractional Inch) | 5 |
| Standards | AMS 5688; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (Decimal Inch) | 0.1350 |
| UNSPSC Code | 31161907 |
