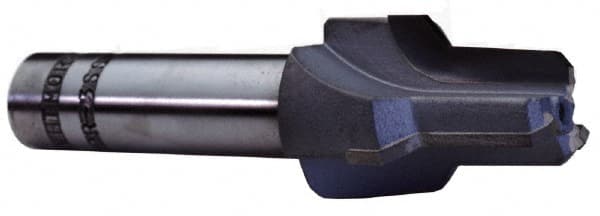

Scientific Cutting Tools - M8x1.00mm Port, 0.5551" Spotface Diam, Reamer Pilot, Carbide Tipped Porting Tool
Item #: 06606768
Brand: Scientific Cutting Tools
Model #: 6149-M8X1
Features and Benefits
Carbide-tipped cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
| Product Specifications | |
|---|---|
| Port Standard Designation | ISO 6149-1; SAE J2244-1 |
| Pilot Type | Reamer |
| Port Thread Size (mm) | M8x1.00 |
| Tool Material | Carbide-Tipped |
| Minimum Pilot Diameter (mm) | 7.000 |
| Minimum Pilot Diameter (Decimal Inch) | 0.2756 |
| Maximum Pilot Diameter (Decimal Inch) | 0.3602 |
| Spotface Diameter (Decimal Inch) | 0.5551 |
| Spotface Diameter (mm) | 14.10 |
| Pilot Length (Decimal Inch) | 0.3858 |
| Identification Groove | No |
| Finish/Coating | Bright |
| Head Length (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 3.0000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 1.7500 |
| Seal Angle | 12 |
| Thread Type | Metric Fine |
| Flute Type | Straight |
| Number of Flutes | 3 |
