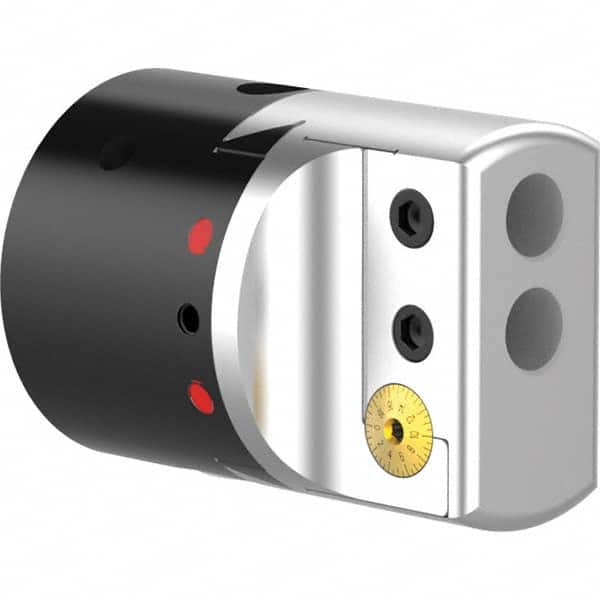

Criterion - 4" Body Diam, Manual Fine Boring Head
Item #: 18485870
Brand: Criterion
Model #: CB204E
Features and Benefits
Fine boring heads are use in applications where high precision and close-hole tolerances are required. The design increases quality and improved productivity during an operation.
Threaded mount boring heads have an internal thread for securing to a boring head shank.
| Product Specifications | |
|---|---|
| Type | Fine Boring Head |
| Actuation Type | Manual |
| Body Diameter (Inch) | 4 |
| Mount Type | Threaded Mount |
| Shank Type | Modular Connection |
| Boring Bar Hole Diameter (Inch) | 1 |
| Thread Size | 1-1/2 - 18 |
| Series | CB |
| Minimum Bore Diameter (Decimal Inch) | 0.2500 |
| Maximum Bore Diameter (Decimal Inch) | 13.4370 |
| Projection (Decimal Inch) | 3.7150 |
| Overall Length (Decimal Inch) | 3.7150 |
| Offset (Inch) | 1.6250 |
| Offset (Decimal Inch) | 1.6250 |
| Travel Size (Decimal Inch) | 1.6250 |
| Diameter Direct Reading (Decimal Inch) | 0.0010 |
| Machine Compatibility | CNC; Manual |
