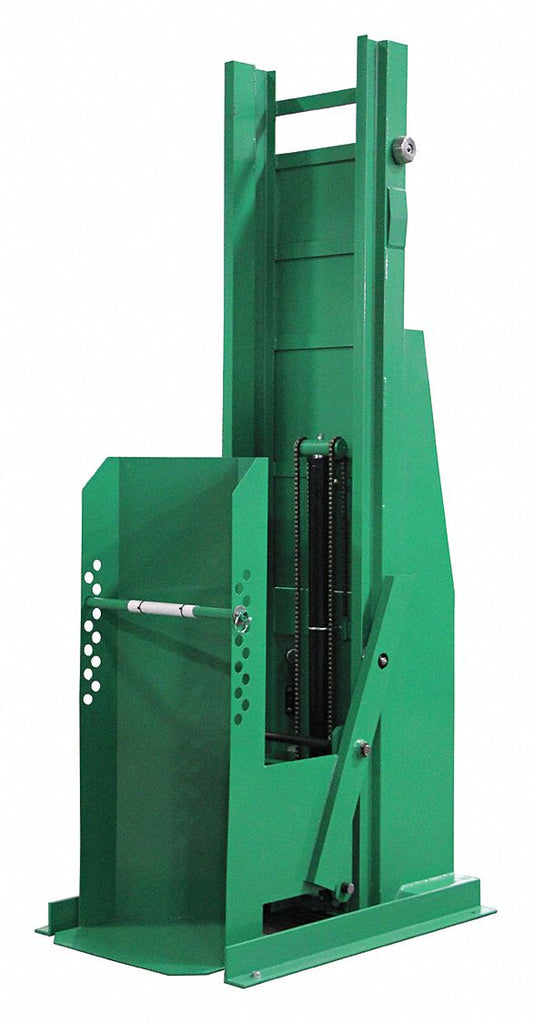

High Level Drum Dumper, Stationary - Dual Stage, 1500 lb. Load Capacity, 47" Overall Length
Item #: 20HA68
Brand: VALLEY CRAFT
Supplier #: F80153A3
Exact Tooling IR#: 08
| Product Specifications | |
|---|---|
| Item | High Level Drum Dumper |
| Type | Stationary - Dual Stage |
| Overall Length | 47" |
| Overall Height | 110" |
| Level Height | 96" |
| Overall Width | 36" |
| Rotated Height | 155" |
| Dia. | 14" to 24" |
| Dispensing Height | 96" |
| Clearance Between Legs | 30" |
| Dump Angle | 45 Degrees |
| Total Raise Time | 78 Seconds, Up Only |
| Number of Drums | 1 |
| Drum Capacity | 55 gal. |
| Load Capacity | 1500 lb. |
| Construction | Steel |
| Finish | Powerder Coated |
| Voltage | 110 |
| Motor HP | 1 |
| Includes | 1/60/110V power unit with 1HP motor and 1 GPM pump, adjustable hold-down bar to accomadate various drum heights up to 43". Horizontal Clearance 66" , Chute Reach 6-1/2" |
| UNSPSC # | 24101903 |
| Country of Origin | USA |
