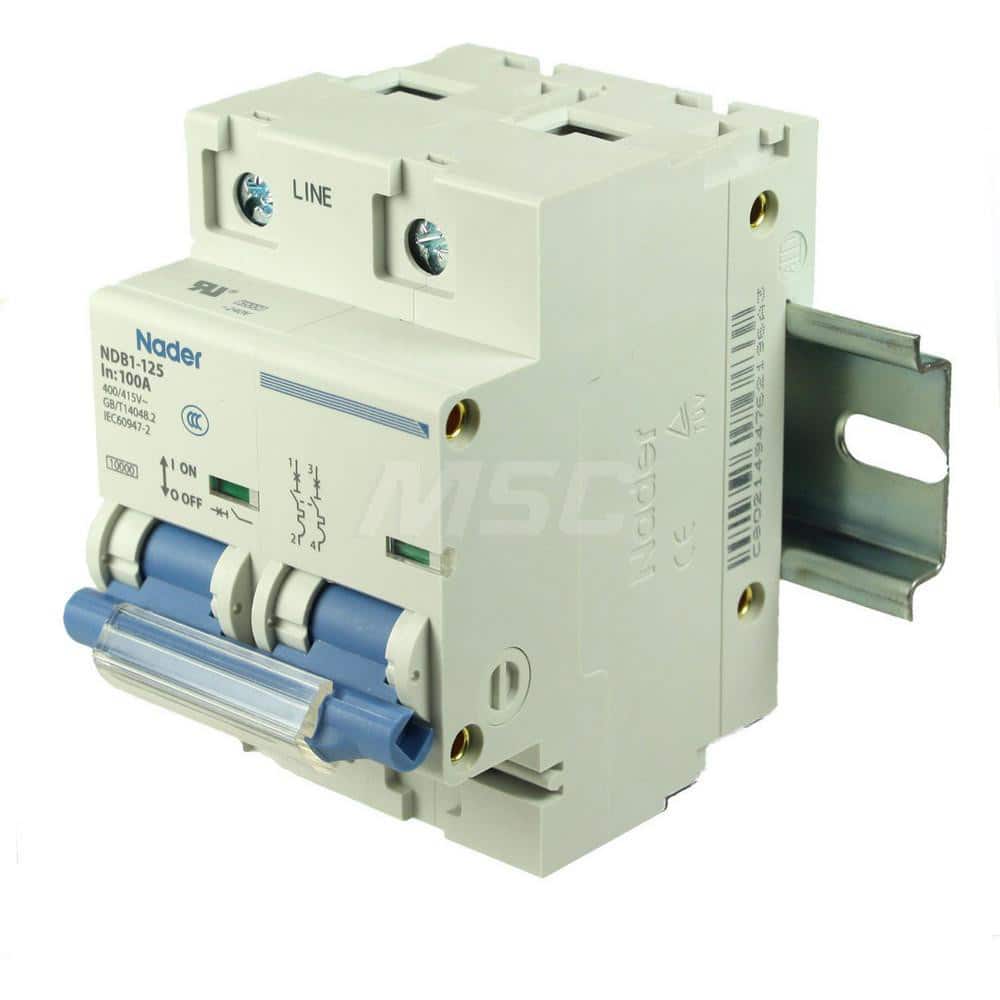

Circuit Breakers; Circuit Breaker Type: C60SP - Supplementary Protection; Milliamperage (mA): 100; 100000; Number of Poles: 2; Breaking Capacity: 10 kA; Tripping Mechanism: Thermal-Magnetic; Terminal Connection Type: Screw; Mounting Type: DIN Rail Mount;
Item #: 20960670
Brand: Nader
Model #: NDB1-125D100-2
Product Specifications
| Circuit Breaker Type | C60SP - Supplementary Protection |
| Milliamperage (mA) | 100; 100000 |
| Number of Poles | 2 |
| Breaking Capacity | 10 kA |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Screw |
| Mounting Type | DIN Rail Mount |
| Voltage | 240 VAC; 60 VDC |
| Wire Size (sq mm) | 8-50 |
| Wire Size (AWG) | 8-1/0 |
| Durability | 10000 Cycles |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -31 |
| Overall Depth (mm) | 75 |
| Overall Depth (Inch) | 2.953 |
| Overall Height (mm) | 60 |
| Overall Height (Inch) | 2.362 |
| Overall Width (Decimal Inch) | 2.126 |
| Overall Width (mm) | 54 |
| Standards Met | UL1077 |
