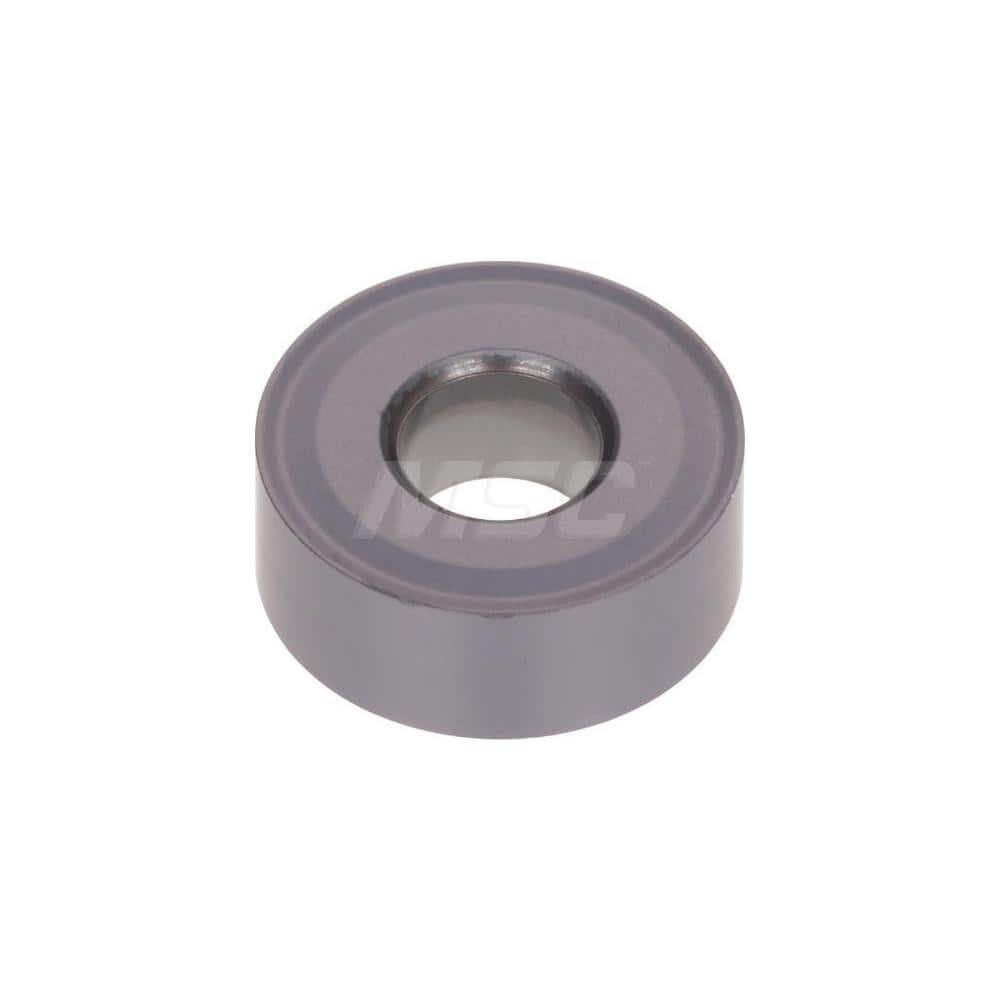

Turning Insert: RNMG43-61 TH10, Solid Carbide Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.2500″ Corner Radius, 0.0 ° N/A Round, Series RNMG
Item #: 20871976
Brand: Tungaloy
Model #: 6805904
Product Specifications
| Insert Style | RNMG |
| Insert Size Code | 43 |
| Insert Shape | Round |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Included Angle | 0.0 |
| Relief Angle | 0 |
| Series | RNMG |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | RNMG4361TH10 |
| Iso Code | RNMG120400-61 TH10 |
| Chip Breaker | 61 |
| Coating/Finish | Uncoated |
