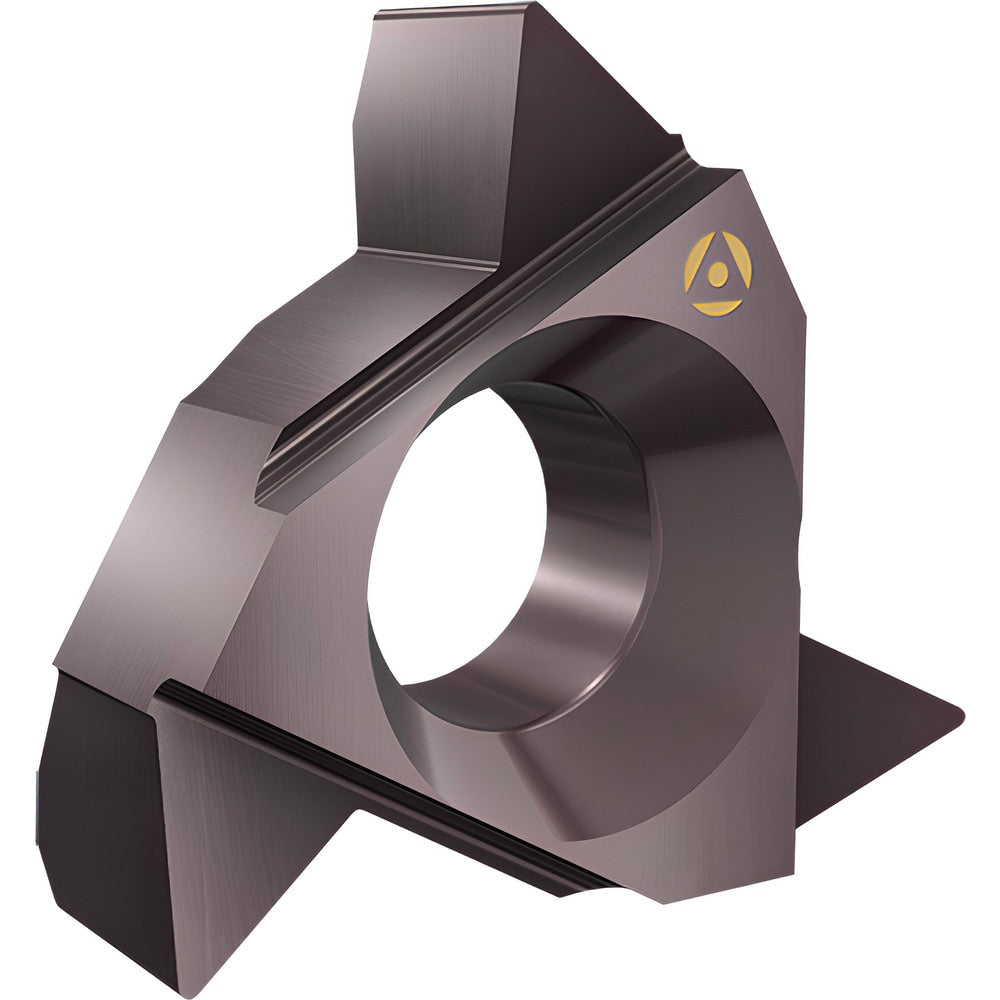

Laydown Threading Insert: MTLD1155D AC22, Carbide
Item #: 88123005
Brand: Tool-Flo
Model #: 2462391
Product Specifications
| Insert Style | LD |
| Insert Size Code | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | AC22 |
| Threads Per Inch | 14-24 |
| Thread Type | Internal |
| Thread Standard | 55 Deg V |
| Insert Hand | Right Hand |
| Included Angle | 55 |
| Chipbreaker | No |
| Series | MT-LD |
| Coating Process | PVD |
| Inscribed Circle (mm) | 0.25 |
| Inscribed Circle (Inch) | 1/4 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | MTLD1155DAC22 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1270 |
| Coating/Finish | AlTiN |
| UNSPSC Code | 23291804 |
| Country of Origin | Israel |
