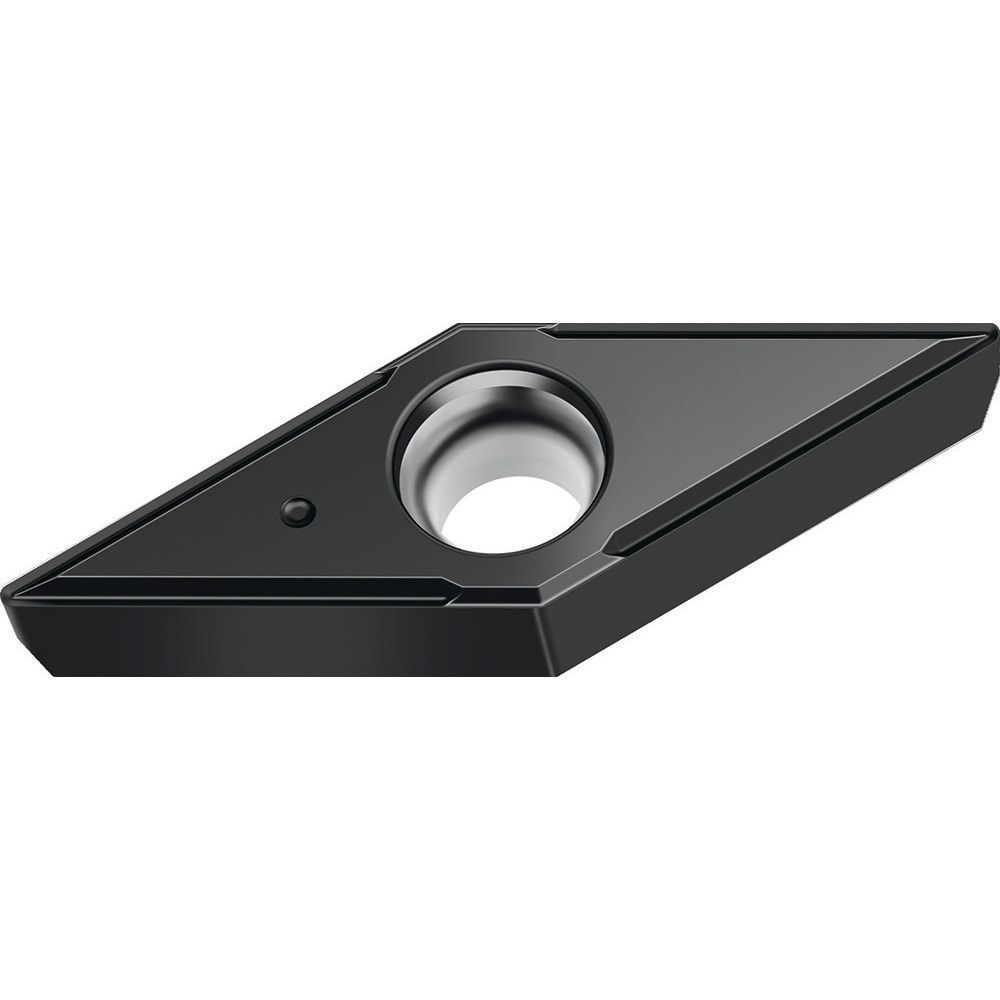

Turning Insert: VBMT221FM6 WSM01, Carbide
Item #: 91740035
Brand: Walter
Model #: 8461476
Product Specifications
| ANSI Insert Code | VBMT221 |
| ISO Insert Code | VBMT110304 |
| Relief Angle | 5.000 |
| Insert Style | VBMT |
| Corner Radius (mm) | 0.40 |
| Included Angle | 35.00 |
| Manufacturer Grade | WSM01 |
| Coating/Finish | TiAlN/THL |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Series | VBMT |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 35° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Steel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Maximum Depth of Cut (mm) | 1.60 |
| Insert Holding Method | Screw |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Length (mm) | 11.07 |
| Manufacturers Catalog Number | VBMT110304-FM6 WSM01 |
| Chip Breaker | FM6 |
| Width (mm - 2 Decimals) | 6.35 |
| ANSI Size Code | 221 |
| ISO Size Code | 110304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| Country of Origin | Germany |
