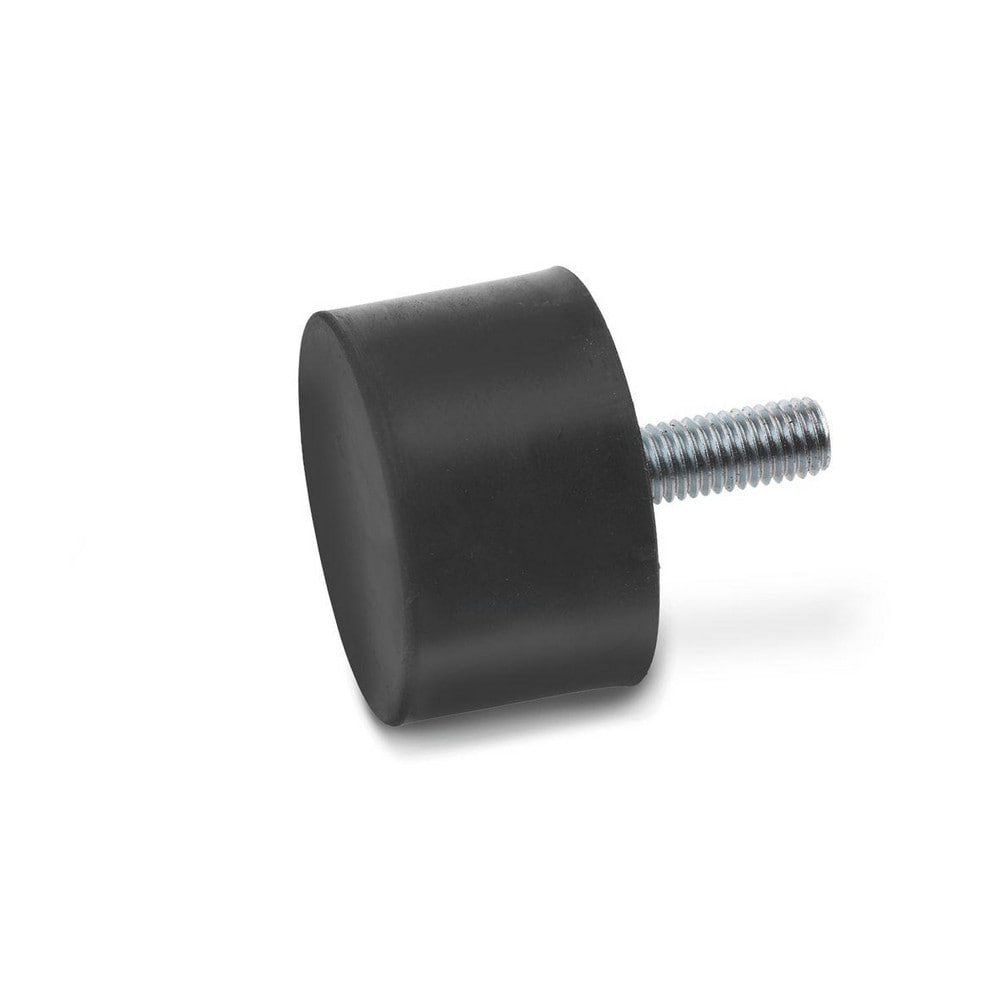

GN352-20-15-M6-S-70 RUBBER BUMPER
Item #: 07851470
Brand: J.W. Winco
Model #: 352-20-15-M6-S-70
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 705.00 |
| Top Diameter | 20.00 |
| Bottom Diameter | 20 |
| Thread Size | M6 |
| Overall Width | 20 in |
| Overall Diameter | 20 mm |
| Thread Length (Decimal Inch) | 0.7100 |
| Deflection | 0.1500 |
| Hardness Rating | Shore 70A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 15 mm |
| UNSPSC Code | 23153130 |
