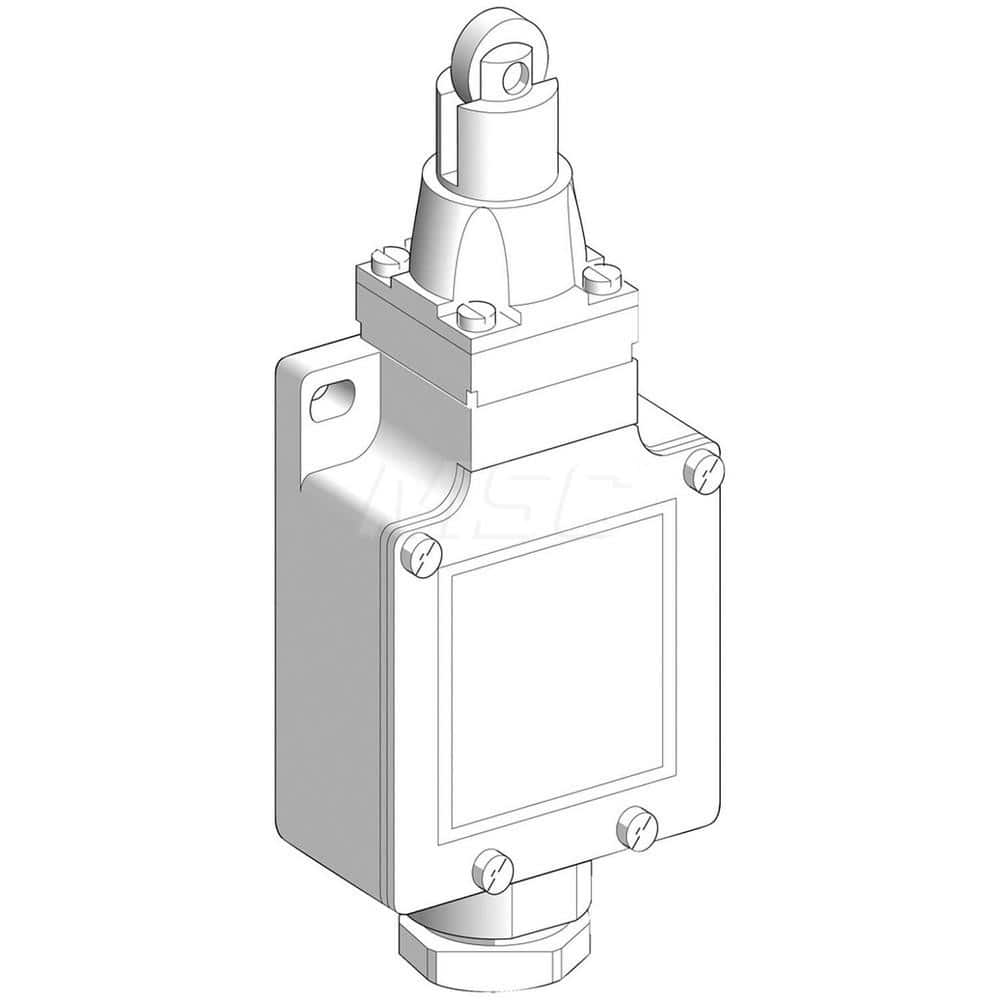

General Purpose Limit Switches; Actuator Type: Roller Plunger; Voltage: 500 V (IEC); 240.00; 300 V (UL); Actuation Force: 12; Contact Form: 1NO/1NC; Switch Type: Limit; Contact Configuration: NO; NC; Switch Action: Springs Back (Momentary); Terminal Type:
Item #: 20615092
Brand: Telemecanique Sensors
Model #: XCKL502
Product Specifications
| Actuator Type | Roller Plunger |
| Voltage | 500 V (IEC); 240.00; 300 V (UL) |
| Actuation Force | 12 |
| Contact Form | 1NO/1NC |
| Switch Type | Limit |
| Contact Configuration | NO; NC |
| Switch Action | Springs Back (Momentary) |
| Terminal Type | Screw Terminal |
| Mounting Type | Cable; Surface Mount |
| Connection Type | Screw Clamp |
| Actuator Length | 5.60 mm |
| Actuator Location | Top |
| Material | Zamak; Metal |
| Mounting Thread Type | Metric |
| Amperage | 3.0000 |
| Wire Connection Type | Screw Terminals |
| Overall Width | 52 |
| Overall Depth | 30.00 mm |
| Movement | Top |
| Ingress Protection Rating | IP66 |
| Series | XC |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Depth (Decimal Inch) | 30.00 mm |
| Standards Met | EN 60204-1; EN 60947-5-1; IEC 60204-1; UL 508; IEC 60947-5-1; CSA C22.2 No 14 |
