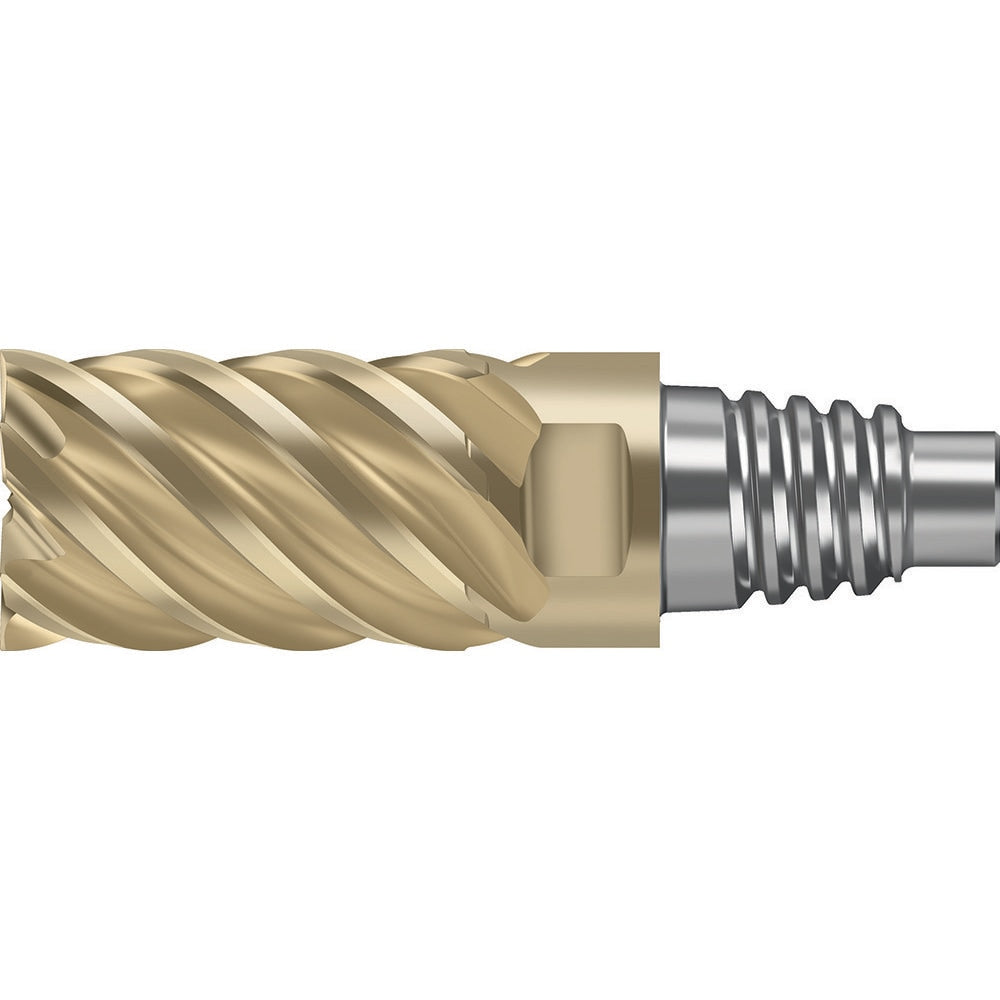

Square End Mill Heads; Mill Diameter (Decimal Inch): 0.4724; Mill Diameter (mm): 12.00; Length of Cut (mm): 18.0000; Connection Type: E12; Overall Length (Decimal Inch): 1.5669
Item #: 51368348
Brand: Walter-Prototyp
Model #: 7873291
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Length of Cut (mm) | 18.0000 |
| Connection Type | E12 |
| Overall Length (Decimal Inch) | 1.5669 |
| Overall Length (mm) | 39.8000 |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | No |
| Flute Type | Spiral |
| Helix Angle | 50 |
| Series/List | MD128 |
| Shank Diameter (mm) | 11.7000 |
| Chamfer Length (Decimal Inch) | 0.0039 |
| Variable Helix | No |
| End Type | Single |
| Chamfer Length (mm) | 0.10 |
| Shank Type | Threaded |
| Extended Reach | No |
| UNSPSC Code | 27112803 |
| Manufacturers Grade | WJ30RD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7087 |
| Variable Index | No |
| Number Of Flutes | 6 |
| Finish Coating | TiAl; TiAlN |
