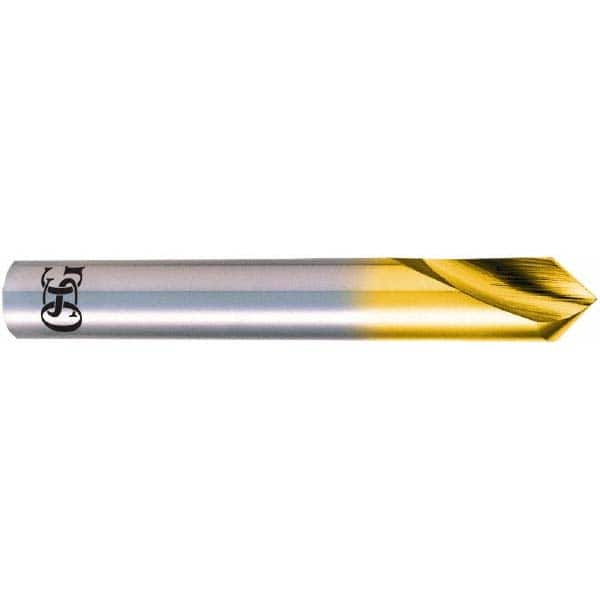

OSG - 4mm Body Diam, 60°, 54mm OAL, High Speed Steel Spotting Drill
Item #: 92458561
Brand: OSG
Model #: 63704
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 4.00 |
| Body Diameter (Decimal Inch) | 0.1575 |
| Drill Point Angle | 60 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | TiN |
| Overall Length (mm) | 54.00 |
| Flute Length (mm) | 15.00 |
| Shank Diameter (mm) | 4.0000 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Series/List | 1200 |
