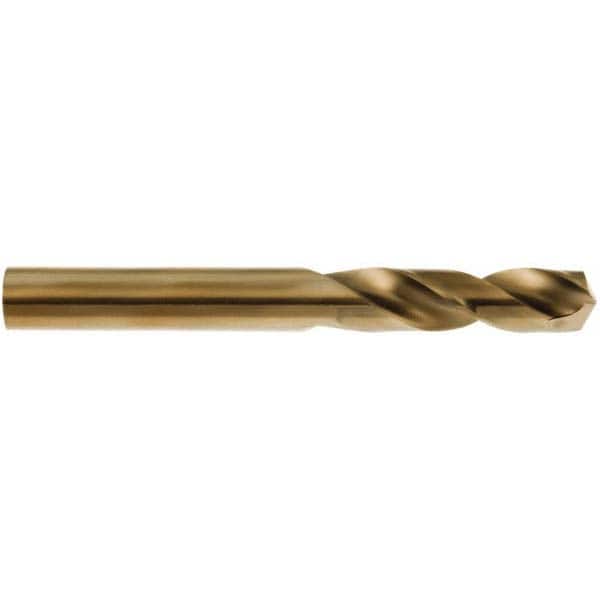

Hertel - 15/32" 135° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 43481910
Brand: Hertel
Model #:
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide/Gold provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used in several applications on low carbons, stainless steel and iron based ferrous metals.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4688 |
| Drill Bit Size (Inch) | 15/32 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Spiral |
| Flute Length (Inch) | 2-1/8 |
| Flute Length (mm) | 53.98 |
| Flute Length (Decimal Inch) | 2.1250 |
| Overall Length (Inch) | 3-5/8 |
| Overall Length (mm) | 92.08 |
| Overall Length (Decimal Inch) | 3.6250 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Split Point |
| Spiral Type | Regular Spiral |
| Material Grade | M35 |
