Sandvik Coromant - 7/32" 130° Spiral Flute Solid Carbide Screw Machine Drill Bit - Exact Tool & Supply

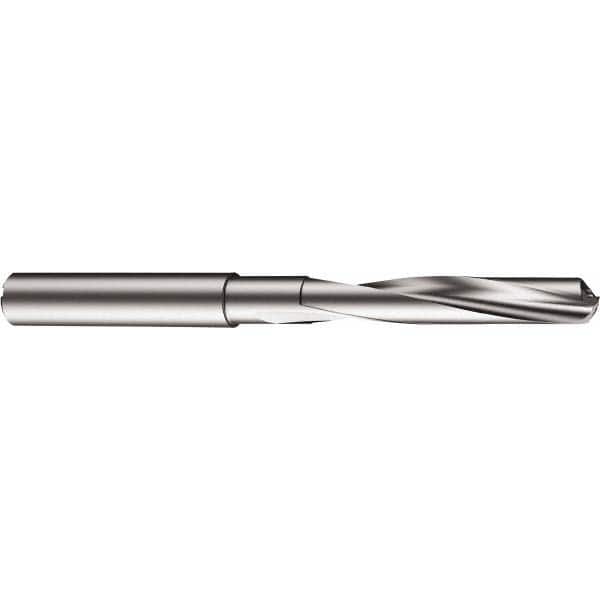

Sandvik Coromant - 7/32" 130° Spiral Flute Solid Carbide Screw Machine Drill Bit


Item #: 49371156
Brand: Sandvik Coromant
Model #: 6253884

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Product Specifications
Drill Bit Size (Decimal Inch) 0.2188
Drill Bit Size (Inch) 7/32
Drill Point Angle 130
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Uncoated
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through Yes
Flute Length (Decimal Inch) 1.1024
Overall Length (Decimal Inch) 2.5984
Flute Length x Diameter Ratio 3.1295xD
Point Type Split Point
Shank Diameter (mm) 6.00
Shank Diameter (Decimal Inch) 0.2362
Flute Type Spiral
Specification Designation ANSI; DIN; ISO
Maximum Drilling Depth (mm) 17.40
Maximum Drilling Depth (Decimal Inch) 0.6850
Spiral Type Slow Spiral
Shank Length (Decimal Inch) 1.4173
Threaded Shank No
Number of Flutes 2
Drill Point Length (mm) 0.70
Drill Point Length (Decimal Inch) 0.0276
Drill Tip Finish/Coating None
Number of Margins 0.000
Drill Bit Grade High Performance
Drill Bit Grade High Performance
Series/List CoroDrill 860
Length Type Regular
