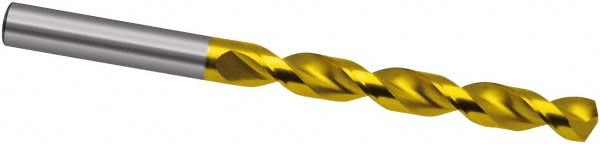

Jobber Drill: 8.80 mm Dia, 130 deg Point, Powdered Metal
Item #: 53737136
Brand: Guhring
Model #: 9055220088000
Product Specifications
| Drill Bit Size (mm) | 8.80 |
| Drill Bit Size (Decimal Inch) | 0.3465 |
| Drill Bit Material | Powdered Metal |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3465 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Spiral Type | Regular |
| Flute Length (mm) | 81.00 |
| Flute Length (Decimal Inch) | 3.1890 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.8 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
