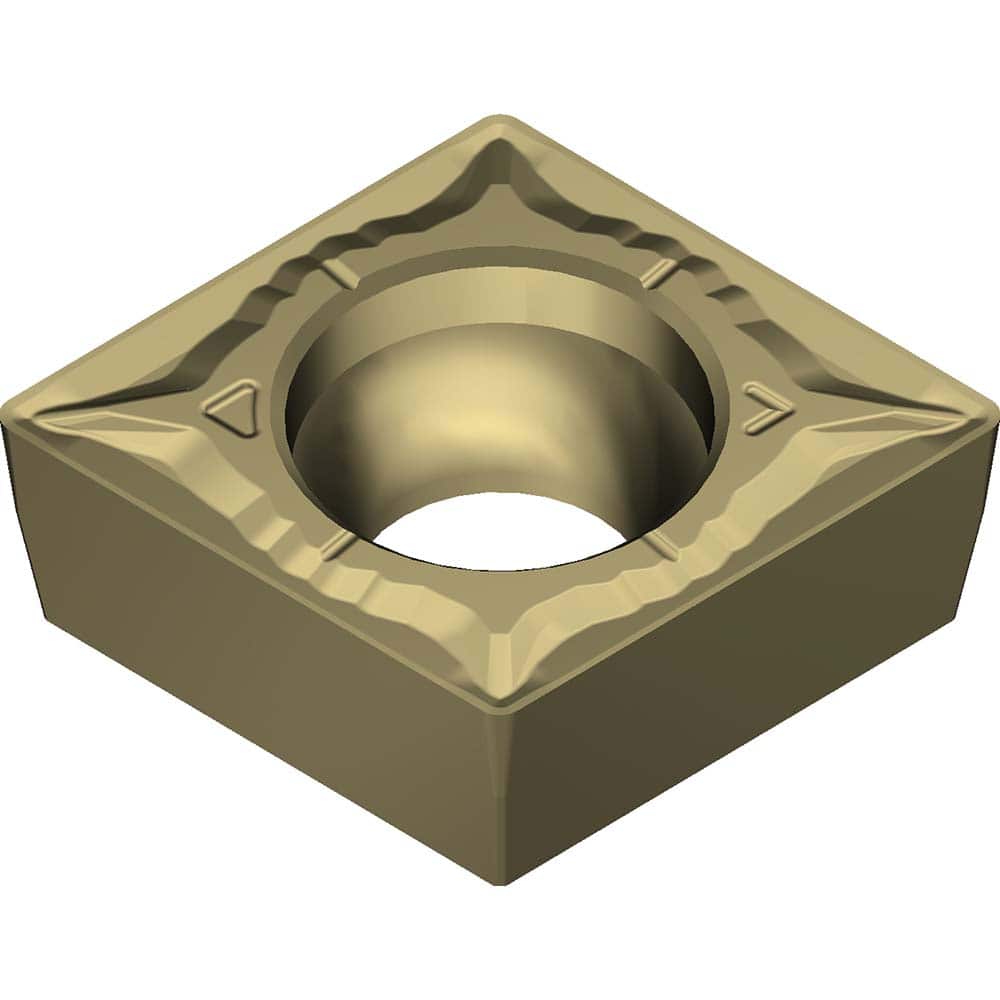

CCMT21.51EGU AC8020P Carbide Turning Insert Absotech Finish, 0.252″ Long, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 0.0937″ Thick, Series AC8020P
Item #: 19645175
Brand: Sumitomo
Model #: 19W1DCJ
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 21.51 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8020P |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | AC8020P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2520 |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Steel |
| Iso Code | CCMT060204N-GU |
| Manufacturers Catalog Number | CCMT21.51EGU-AC8020P |
| Material Grade | P20 |
| Chip Breaker | EGU |
| Coating/Finish | Absotech |
