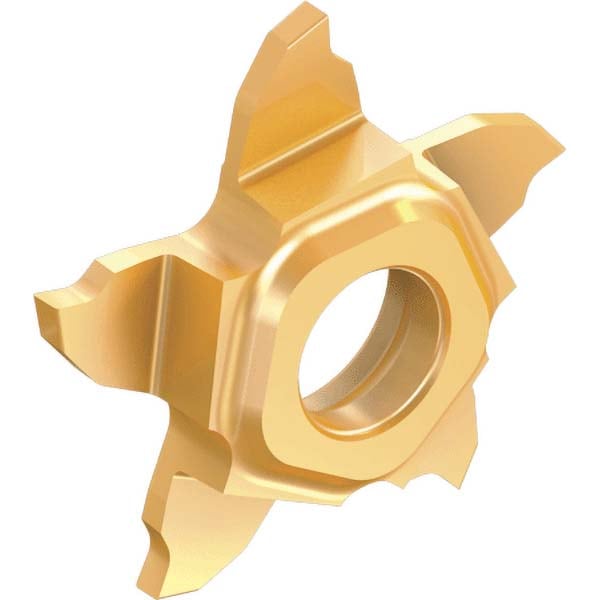

Grooving Insert: PENTA17N080P000P IC1008, Solid Carbide
Item #: 96410899
Brand: Iscar
Model #: 3337221
Product Specifications
| Insert Style | PENTA |
| Insert Size Code | 17N080P000 |
| Cutting Width (Decimal Inch) | 0.0314 |
| Cutting Width (mm) | 0.80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Material | Carbide |
| Manufacturer Grade | IC1008 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Holding Method | Screw |
| Insert Size | 17N080P000 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.0200 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | PentaCut |
| Coating Process | PVD |
| Rake Angle | 10 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| UNSPSC Code | 23242105 |
| Chip Breaker | P |
| Coating/Finish | TiN; TiAlN |
| Country of Origin | Israel |
