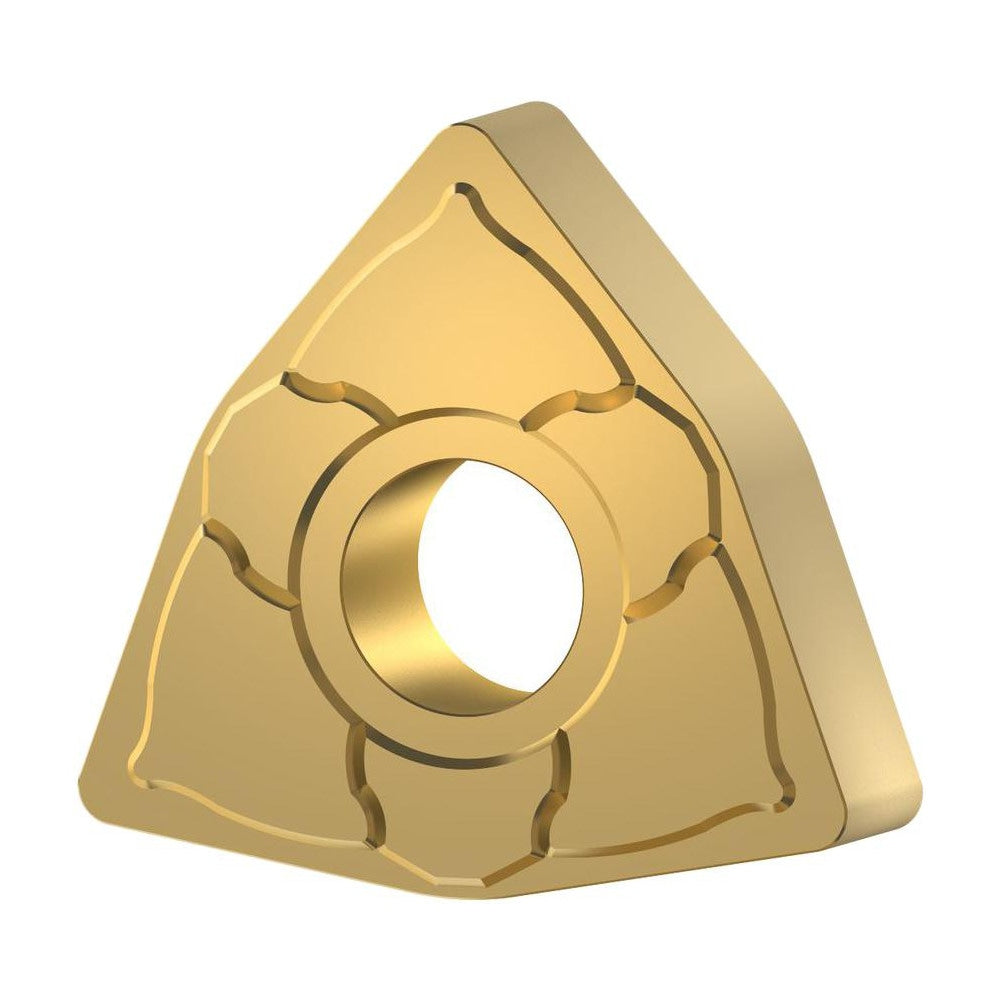

Turning Insert: WNMG432FWS KTP25S, Carbide
Item #: 96417589
Brand: Kennametal
Model #: 7161100
Product Specifications
| ANSI Insert Code | WNMG432 |
| ISO Insert Code | WNMG080408 |
| Relief Angle | 0.000 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35.00 |
| Manufacturer Grade | KTP25S |
| Coating/Finish | TiCN |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Series | WNMG |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | Trigon 80° |
| Chip Breaker Operation | Wiper - Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/16 |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3420 |
| Iso Code | WNMG080408FWS |
| Manufacturers Catalog Number | WNMG432FWS KTP25S |
| Chip Breaker | FWS |
| ANSI Size Code | 432 |
| ISO Size Code | 080408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | UNITED STATES |
