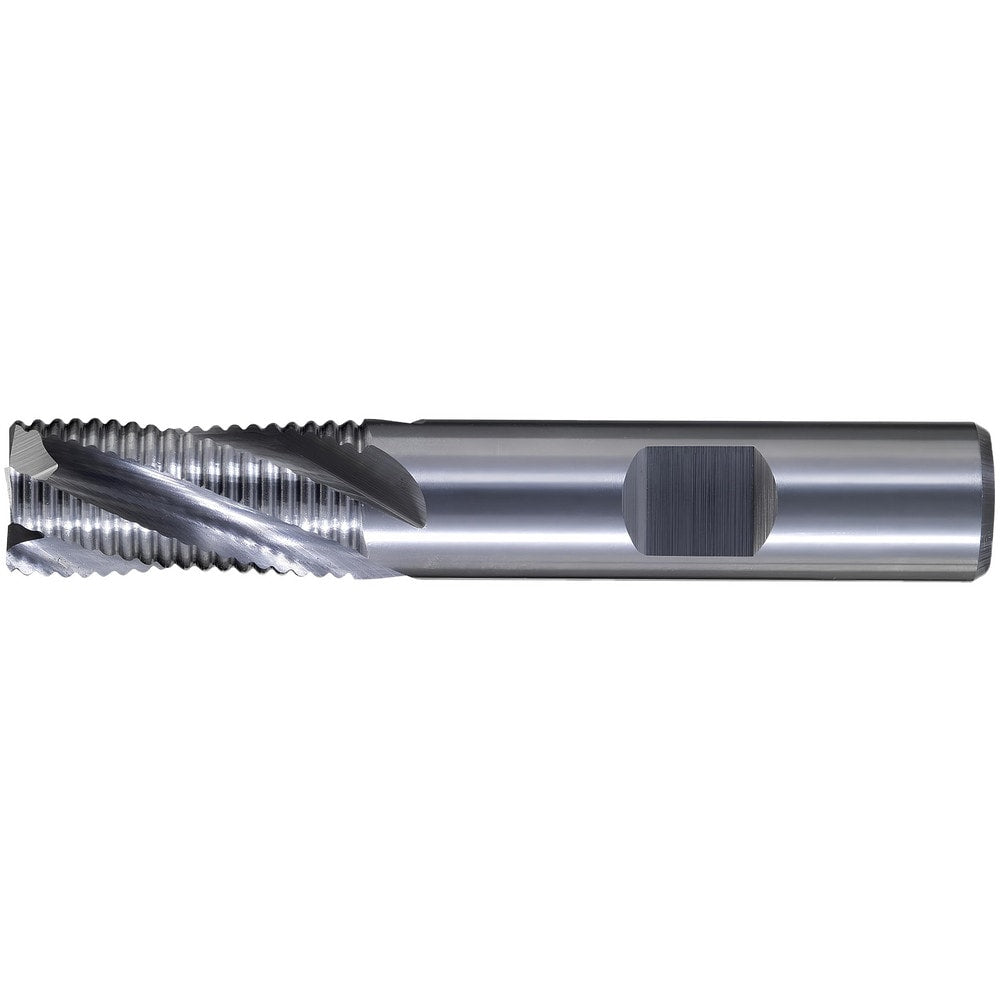

Roughing End Mill: 1/4" Dia, 4 Flute, Fine Pitch, Single End, Solid Carbide
Item #: 76499391
Brand: Cleveland
Model #: C60148
Product Specifications
| Mill Diameter (Fractional Inch) | 1/4 |
| Mill Diameter (mm) | 6.35 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Pitch | Fine |
| Length of Cut | 1/4 |
| Length of Cut (mm) | 6.35 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Shank Diameter (Inch) | 1/4 |
| Centercutting | Yes |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Shank Diameter (mm) | 6.3500 |
| Shank Diameter (Decimal Inch) | 0.25 |
| Shank Type | Round; Straight |
| Variable Helix | No |
| Variable Index | No |
| Material Grade | Sub Micrograin |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Stub |
| Flute Type | Spiral |
| Series | CEM-RS |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
