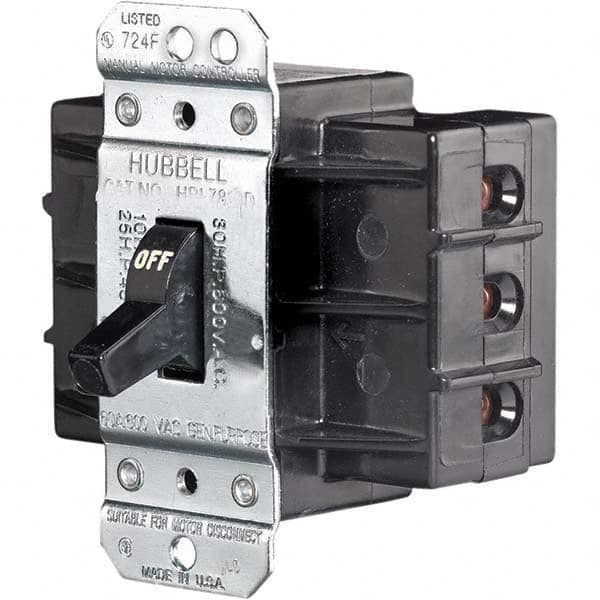

Cam & Disconnect Switches; Enclosure Type: Open; Fused: Non-Fused; Horsepower: 10 - 30; Number of Phases: 3; Amperage: 60 A; Contact Form: 3PST; Voltage: 600 V ac; Horsepower at 1 Phase: 2 @ 230 V; Horsepower at 3 Phase: 60 @ 600 V; Number of Poles: 3; Nu
Item #: 19064583
Brand: Hubbell Wiring Device-Kellems
Model #: HBL7863D
Product Specifications
| Enclosure Type | Open |
| Fused | Non-Fused |
| Horsepower | 10 - 30 |
| Number of Phases | 3 |
| Amperage | 60 A |
| Contact Form | 3PST |
| Voltage | 600 V ac |
| Horsepower at 1 Phase | 2 @ 230 V |
| Horsepower at 3 Phase | 60 @ 600 V |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Overall Depth (mm) | 1.9200 in; 1.92 in |
| Overall Depth (Inch) | 1.9200 |
| Overall Depth (Decimal Inch) | 1.92 |
| NEMA Enclosure Rating | 0-1 |
| Overall Height (Decimal Inch) | 3.7800 in |
| Overall Width (mm) | 3.54 in |
| Overall Width (Decimal Inch) | 3.5400 |
| Standards Met | CSA-C22.2 No.14 Industrial Control File LR-46186; UL 508, Industrial Control File #E70402 |
| Amperage Rating | 60 |
