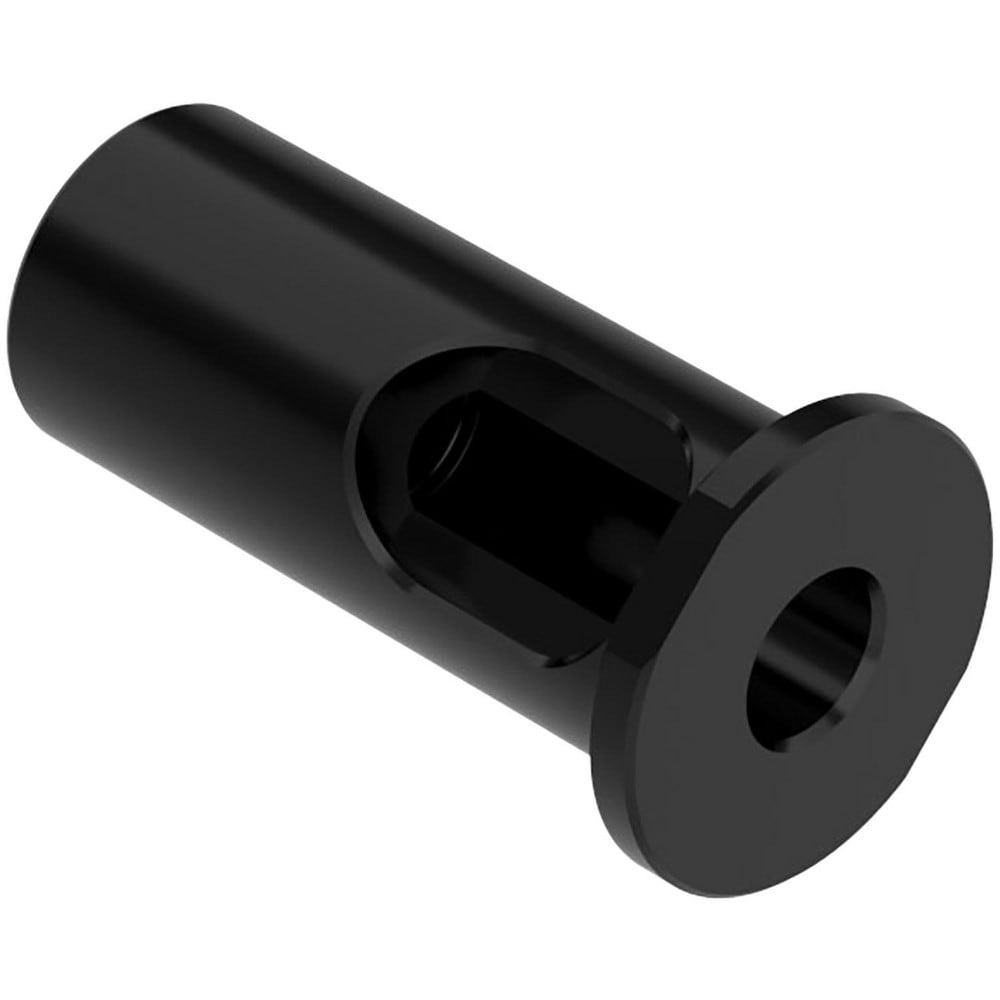

Lathe Tool Holder Bushings; Bushing Type: Tool Holder Bushing (Lathe); Outside Diameter (Decimal Inch
Item #: 71458889
Brand: Allied Machine and Engineering
Model #: SLVPT-075I-40M
Product Specifications
| Bushing Type | Tool Holder Bushing (Lathe) |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.5748 |
| Inside Diameter (Inch) | 3/4 |
| Morse Taper Size | 0 |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Head Thickness (Decimal Inch) | 0.2500 |
| Head Thickness | 1/4 |
| Length Under Head (Decimal Inch) | 3.6550 |
| Slot Length (Decimal Inch) | 1.6110 |
| Slot Length (mm) | 40.92 |
| Distance Between Hole Centers (Decimal Inch) | 3.9055 |
| Hole Diameter (Inch) | 2-1/8 |
| UNSPSC Code | 27112809 |
| Bushing Type | Tool Holder Bushing (Lathe) |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.5748 |
| Inside Diameter (Inch) | 3/4 |
| Morse Taper Size | 0 |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Head Thickness (Decimal Inch) | 0.2500 |
| Head Thickness | 1/4 |
| Length Under Head (Decimal Inch) | 3.6550 |
| Slot Length (Decimal Inch) | 1.6110 |
| Slot Length (mm) | 40.92 |
| Distance Between Hole Centers (Decimal Inch) | 3.9055 |
| Hole Diameter (Inch) | 2-1/8 |
| UNSPSC Code | 27112809 |
| MSC Part # | 71458889 |
| Mfr Part # | SLVPT-075I-40M |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
