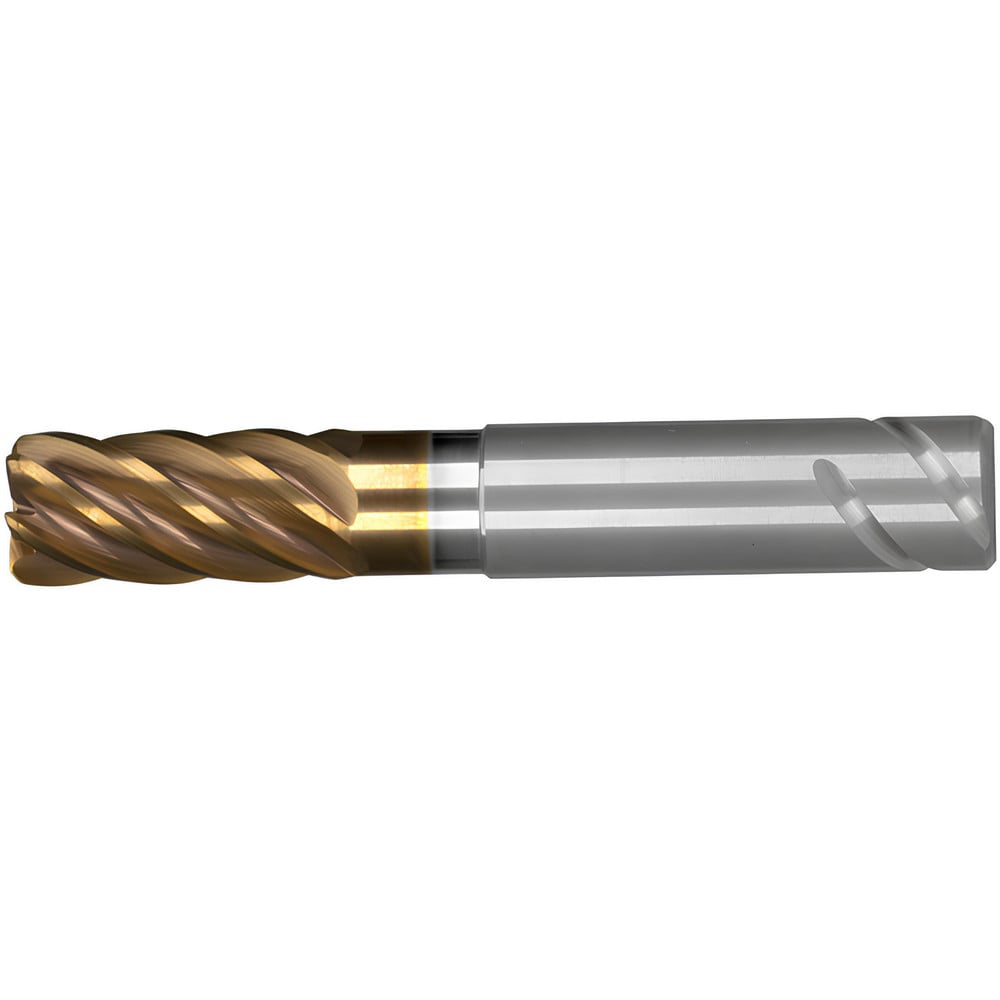

Corner Radius End Mill: 20 mm Dia, 38.00 mm LOC, 2.00 mm Radius, 6 Flute, Solid Carbide
Item #: 67229252
Brand: Kennametal
Model #: 7077316
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 6 |
| Length of Cut (mm) | 38.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.00 |
| Overall Length (mm) | 115.00 |
| Coolant Through | No |
| Pitch | Close |
| End Type | Corner Radius |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Safe-Lock |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 20.00 |
| Neck Diameter (mm) | 18.80 |
| Reach Length (mm) | 60.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | Submicron |
| Series | HA3R |
| Material Application | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Metric Bores; ER Single Angle Standard Collets; HC-DV Form B/AD |
| Helix Style | High |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 6 |
| Length of Cut (mm) | 38.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.00 |
| Overall Length (mm) | 115.00 |
| Coolant Through | No |
| Pitch | Close |
| End Type | Corner Radius |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Safe-Lock |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 20.00 |
| Neck Diameter (mm) | 18.80 |
| Reach Length (mm) | 60.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; M |
| Material Grade | Submicron |
| Series | HA3R |
| Material Application | Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Metric Bores; ER Single Angle Standard Collets; HC-DV Form B/AD |
| Helix Style | High |
| MSC Part # | 67229252 |
| Mfr Part # | 7077316 |
| Country of Origin Country of Origin is subject to change | Israel |
