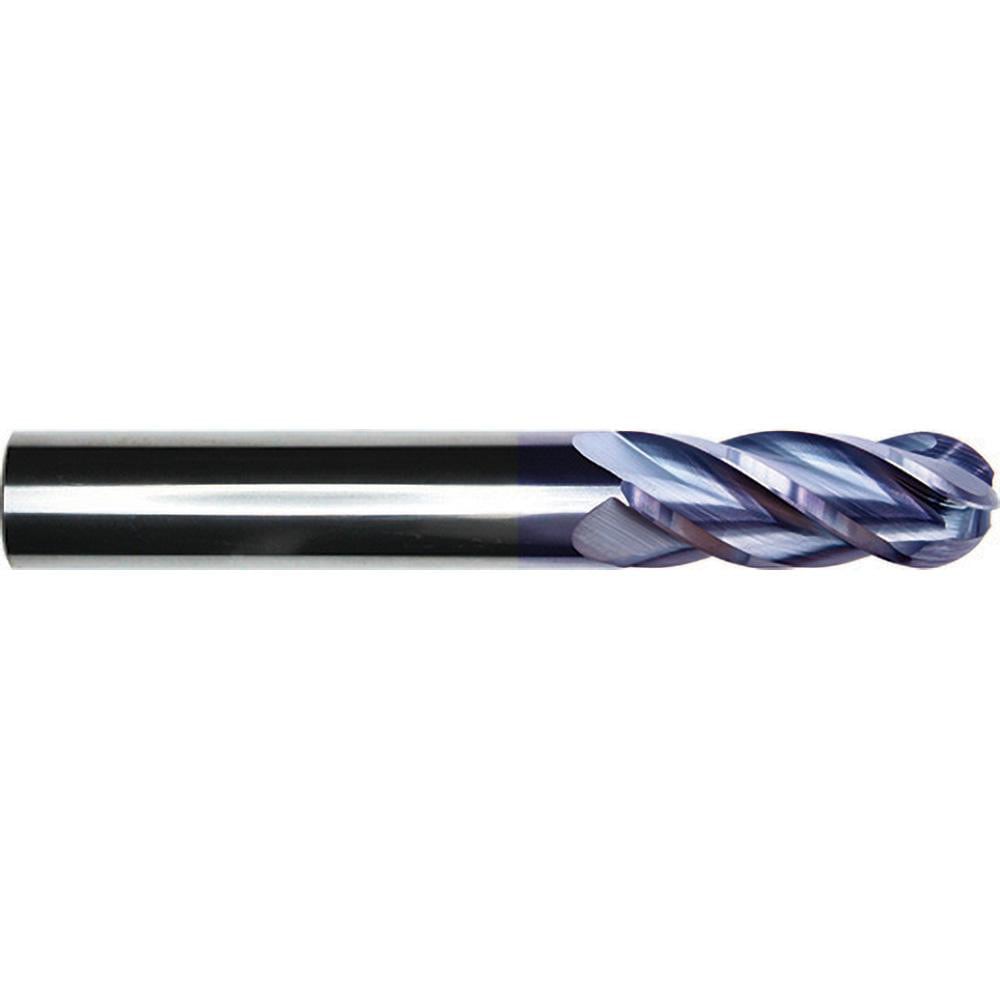

Ball End Mill: 3/16" Dia, 3/8" LOC, 4 Flute, Solid Carbide
Item #: 08567802
Brand: Internal Tool
Model #: 116-1000
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/8 |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 3/16 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 1.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Standard |
| Helix Style | High |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Nose Radius (Decimal Inch) | 0.0938 |
| Maximum Helix Angle | 45 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 116 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Variable |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Manufacturers Catalog Number | 116-1000 |
