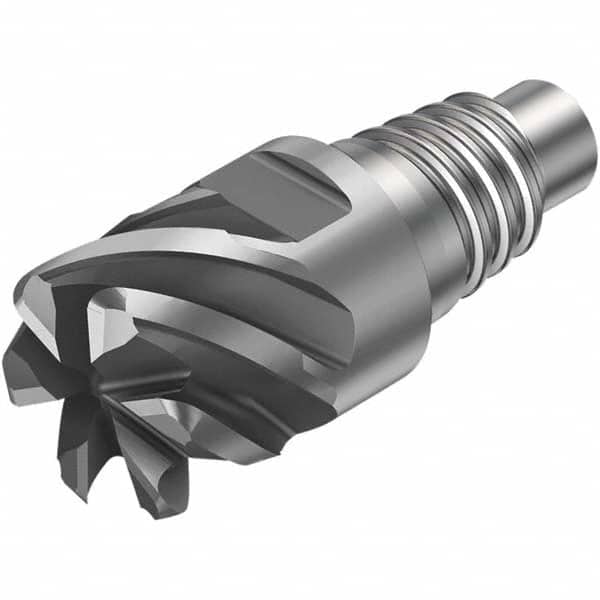

Corner Chamfer End Mill Head: 0.4724″ Dia, 45 °, 6 Flute E12, Solid Carbide, AlTiN Finish, Spiral Flute, Series 316
Item #: 17478827
Brand: Sandvik Coromant
Model #: 7611722
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Chamfer Width (mm) | 0.10 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 6.50 |
| Connection Type | E12 |
| Overall Length (mm) | 6.50 |
| Centercutting | No |
| Maximum Helix Angle | 50 |
| Flute Type | Spiral |
| Material Grade | 1730 |
| Series | 316 |
| Helix Angle | 50 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Number Of Flutes | 6 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
