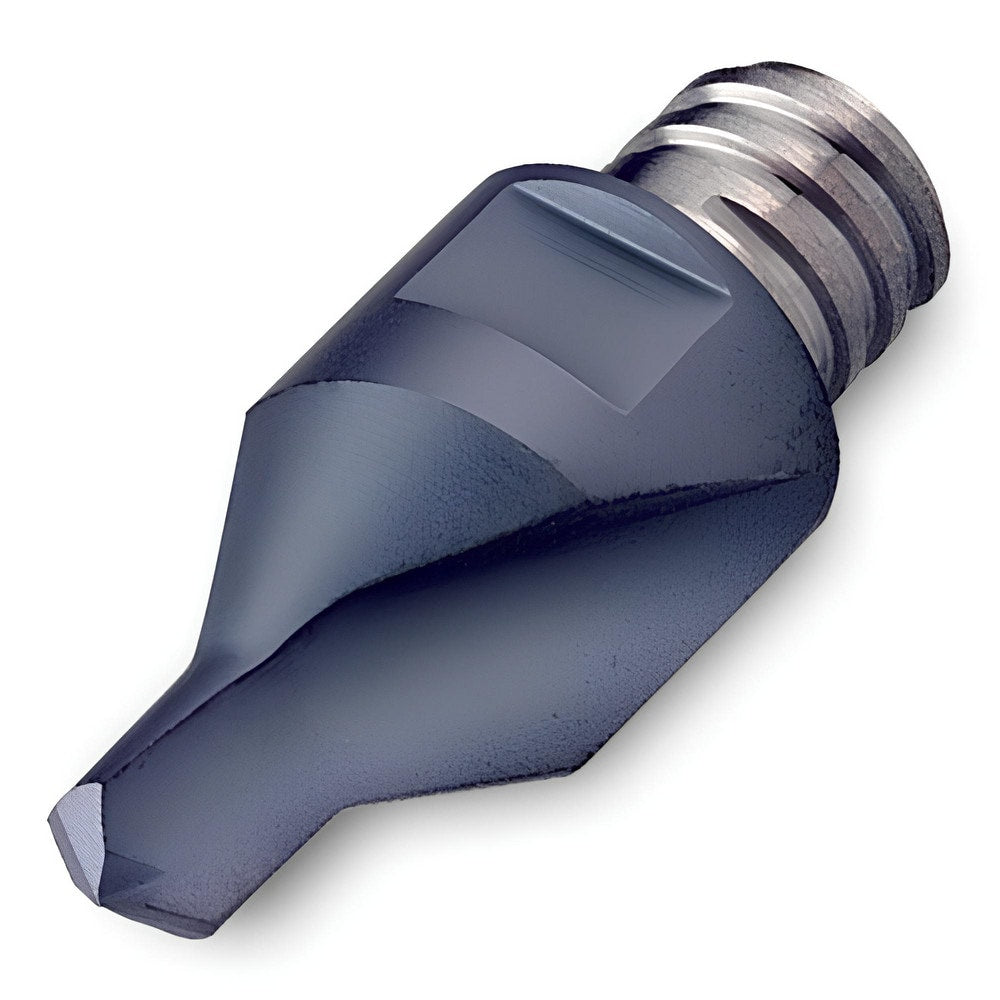

Brand: Ingersoll Cutting Tools / Part #: 5812751
Item #: 95862769
Brand: Ingersoll Cutting Tools
Model #: 5812751
Product Specifications
| Maximum Drill Diameter (mm) | 5.13 |
| Point Angle | 120.00 |
| Diameter (mm) | 5.1300 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2005 |
| Cutting Direction | Right Hand |
| Series | 45Z |
| Coating Process | PVD |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Hi-Temp Alloys; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Height (mm) | 23.0000 |
| Head Length (mm) | 23.00 |
| Cutting Diameter (mm) | 5.13 |
| Drill Point Angle | 120 |
| Flute Type | Helical |
| Insert Holding Method | Screw-On |
| ISO Number | 45Z05113T8RA23 IN2005 |
| Coolant Through | No |
| Flute Length (mm) | 23.00 |
| Point Type | Center Drill |
| Spiral Type | Regular |
| Style | 45Z |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 120 |
| Number Of Flutes | 2 |
