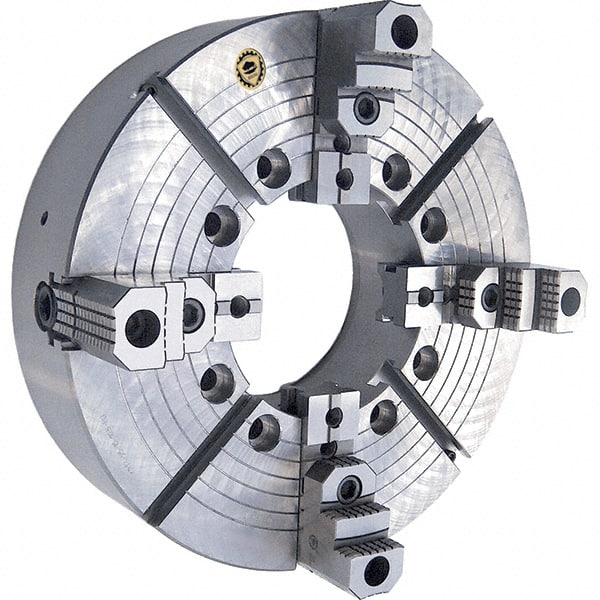

Independent Manual Lathe Chuck: 4-Jaw, 25″ Dia Adjustable, 850 Max RPM
Item #: 16615387
Brand: Bison
Model #: 7-859-2550
Product Specifications
| Chuck Type | Independent |
| Adjustable | Yes |
| Body Material | Forged Steel |
| Through-Hole Diameter (mm) | 270.00 |
| Reversible Jaws | Reversible |
| Chuck Diameter (Decimal Inch) | 25.0000 |
| Chuck Diameter (Inch) | 25 |
| Minimum Jaw Capacity (mm) | 50.00 |
| Maximum Jaw Capacity (mm) | 630.00 |
| Jaw Height (mm) | 90.00 |
| Maximum Rpm | 850 |
| Axial Runout (mm) | 0.03 |
| Body Length | 155.00 |
| Series | 4317 |
| Number Of Jaws | 4 |
| TIR Repeatebility (mm) | 0.0100 |
| Contents | Wrench; Hex Wrench; Manual |
