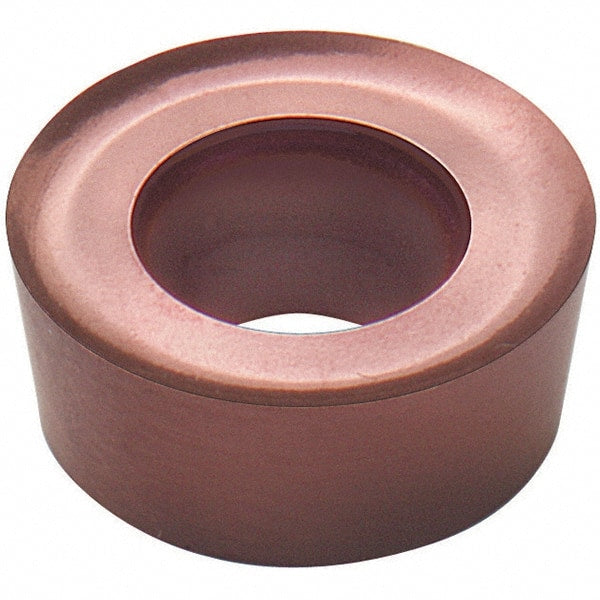

RCGT0602M0-PM2 WK1 Carbide Turning Insert Uncoated, 6mm Inscribed Circle, 3/32″ Thick, Round, Series Tiger-tec
Item #: 16360273
Brand: Walter
Model #: 8132988
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 0602 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WN10 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Relief Angle | 7 |
| Series | RCGT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | RCGT0602M0PM2WK1 |
| Iso Code | RCGT0602M0-PM2 WK1 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | RCGT0602M0-PM2 |
| Material Grade | S10; N10 |
| Chip Breaker | MN2 |
| Cutting Edge Style | Sharp |
| Single Or Double End | Single |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | Turning |
 | |
| MSC Part # | 16360273 |
| Mfr Part # | 8132988 |
| Country of OriginCountry of Origin is subject to change | Germany |
